Front Disc Brake




Brake Disc Shield









Removal and Installation

Four-Wheel Drive (4WD) vehicles

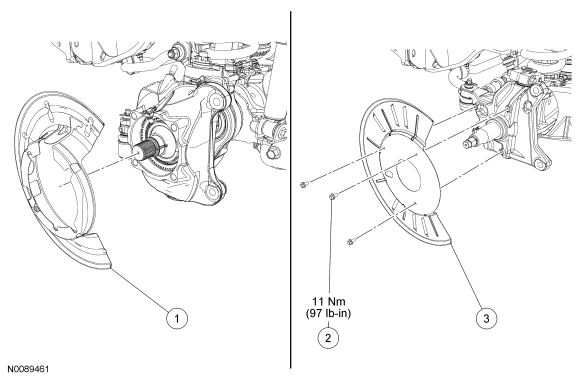

1. The wheel bearing and wheel hub must be removed prior to removing the brake disc shield. Remove the wheel bearing and wheel hub.

Rear Wheel Drive (RWD) vehicles

2. Remove the brake disc. For additional information, refer to Brake Disc .

3. Remove the brake disc shield screws and the brake disc shield.
- To install, tighten to 11 Nm (97 lb-in).


All vehicles

4. To install, reverse the removal procedure.
