Diesel Emissions Fluid (DEF) System




Reductant System Components - Exploded View

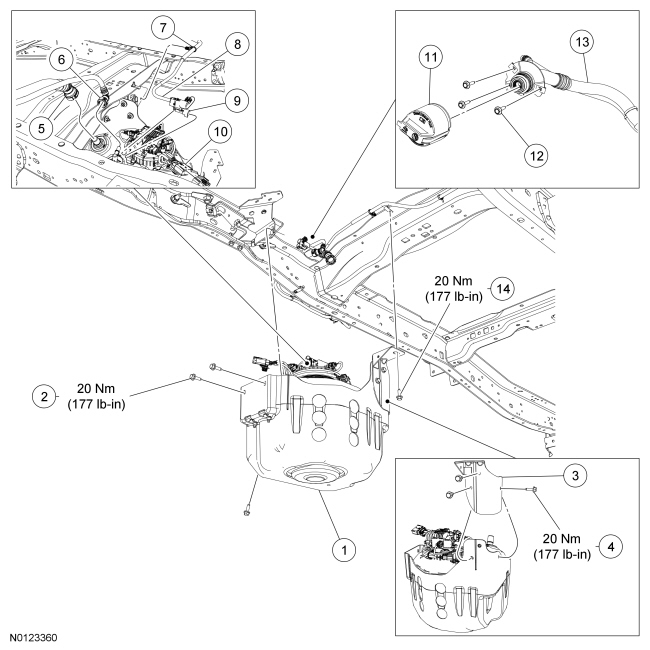

Frame (Inboard) Reductant Tank, Reductant Tank Filler Hose and Reductant Pressure Line

NOTE: The reductant tank, reductant pressure line and reductant injector will vary by vehicle wheelbase.

NOTE: Inboard frame reductant tank filler hose and line connections shown, outboard similar.

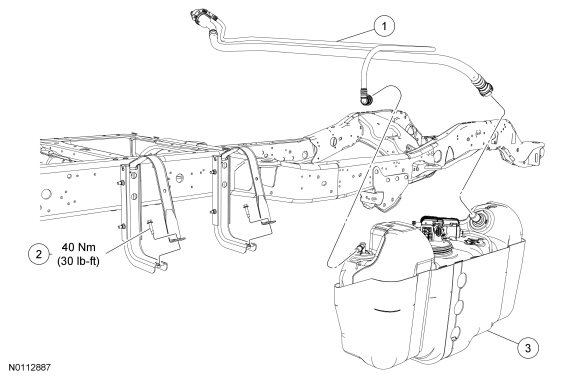

Frame (Outboard) Reductant Tank and Reductant Tank Filler Hose

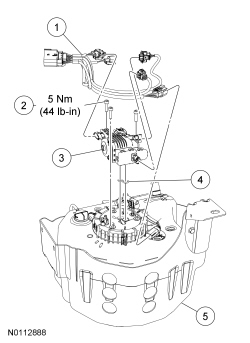

Reductant Pump Assembly

NOTE: Inboard frame reductant tank shown, outboard similar.

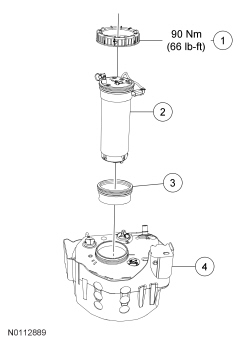

Reductant Heater and Sender Assembly










Reductant Injector and Reductant Pressure Line










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
