Exterior Mirror Glass

Exterior Mirror Glass

Removal

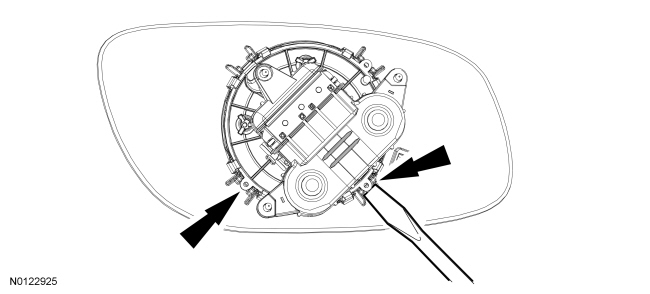

1. NOTE: Exterior mirror glass and motor removed from the housing and viewed from the back to show location of clips and placement of screwdriver.

Disengage the exterior mirror glass from the exterior mirror motor in the following sequence:

1. Position the exterior mirror glass to the full upper outboard position.

2. Insert a flat-blade screwdriver between the lower inboard retaining tab and the exterior mirror glass backing plate.

3. Twist the flat-blade screwdriver to release the retaining tab from the exterior mirror glass backing plate.

4. Position the exterior mirror glass to the full upper inboard position.

5. Insert a flat-blade screwdriver between the upper outboard retaining tab and the exterior mirror glass backing plate.

6. Twist the flat-blade screwdriver to release the retaining tab from the exterior mirror glass backing plate.





2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

Remove the exterior mirror glass from the exterior mirror motor by gently pulling the exterior mirror glass outward

- If equipped, disconnect the electrical connectors.

Installation

1. If equipped, connect the electrical connectors.

2. Position the exterior mirror glass onto the exterior mirror motor.

3. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

NOTICE: Apply hand pressure directly over the center of the mirror. Failure to follow this instruction may result in glass breakage.

Install the exterior mirror glass by pressing firmly in the center of the exterior glass until it snaps onto the exterior mirror motor.
