Clutch Motor - No. 2

Clutch Motor - No. 2





Removal

1. Clean the area around the clutch motor to ensure no debris gets into the clutch motor pocket.

2. Disconnect the clutch motor electrical connector.





3. Remove the 4 clutch motor bolts and the clutch motor.





Installation

1. Inspect the clutch motor pocket for damage or debris. Clean or repair as needed.

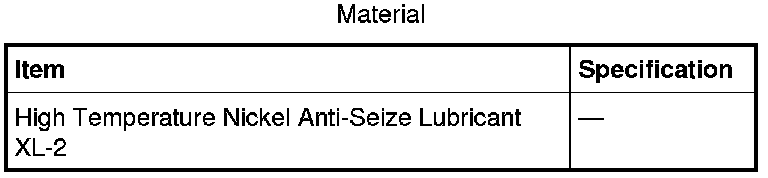

2. Apply anti-seize to the clutch motor surfaces as shown.





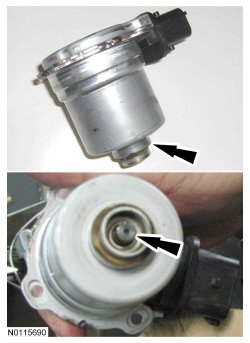

3. Apply anti-seize to the clutch actuator lever splines as shown.





4. NOTE: Clutch motor splines may need to be turned to ease installation.
Install the clutch motor and the 4 clutch motor bolts.

- Tighten to 5 Nm (44 lb-in).






5. Connect the clutch motor electrical connector.
