Input Shaft Speed Sensor - No. 1

Input Shaft Speed Sensor - No. 1





Removal

1. Disconnect the input shaft speed sensor 1 electrical connector.





2. Remove the input shaft speed sensor 1.
1. Remove the input shaft speed sensor 1 bolt.

2. Remove the input shaft speed sensor 1.

3. Remove the input shaft speed sensor 1 shim.






Installation

1. Inspect the input shaft speed sensor 1 and transaxle bore for debris or damage. Clean, repair and/or replace as needed.





2. NOTICE: Be sure to use the 3.5 mm (0.137 in) input shaft speed sensor 1 shim on input shaft speed sensor 1 or damage can occur to the transaxle.

NOTE: Install a new O-ring if installing the existing input shaft speed sensor 1.

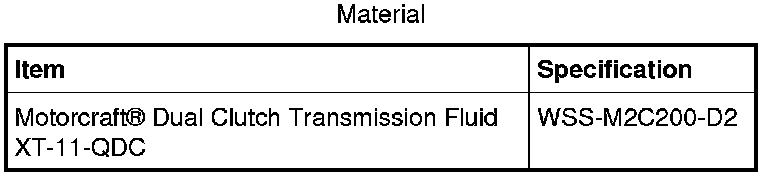

NOTE: Use a small amount of transmission fluid on the input shaft speed sensor 1 O-ring for installation.

Install the input shaft speed sensor 1.
1. Install the input shaft speed sensor 1 shim.

2. Install the input shaft speed sensor 1.

3. Install the input shaft speed sensor 1 bolt.
- Tighten to 10 Nm (89 lb-in).






3. Connect the input shaft speed sensor 1 electrical connector.
