Input Shaft Speed Sensor - No. 2

Input Shaft Speed Sensor - No. 2





Removal

1. Disconnect the input shaft speed sensor 2 electrical connector.





2. Remove the input shaft speed sensor 2.
1. Remove the input shaft speed sensor 2 bolt.

2. Remove the input shaft speed sensor 2.

3. Remove the input shaft speed sensor 2 shim.






Installation

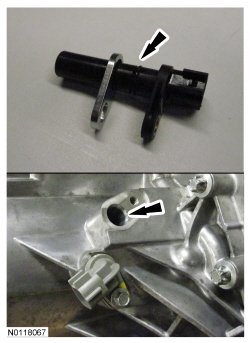

1. Inspect the input shaft speed sensor 2 and transaxle bore for debris or damage. Clean, repair and/or replace as needed.





2. NOTICE: Be sure to use the 3.2 mm (0.125 in) input shaft speed sensor 2 shim or damage can occur to the transaxle.

NOTE: Install a new O-ring if installing the existing input shaft speed sensor 2.

NOTE: Use a small amount of transmission fluid on the input shaft speed sensor 2 O-ring for installation.

Install the input shaft speed sensor 2.
1. Install the input shaft speed sensor 2 shim.

2. Install the input shaft speed sensor 2.

3. Install the input shaft speed sensor 2 bolt.
- Tighten to 10 Nm (89 lb-in).






3. Connect the input shaft speed sensor 2 electrical connector.
