Radiator: Service and Repair

Radiator

Special Tool(s) / General Equipment

Cable Ties
Knife

Removal

1. WARNING: Before beginning any service procedure, Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions. Service Precautions

2.

3.

4.

5.

6. Finger tighten only

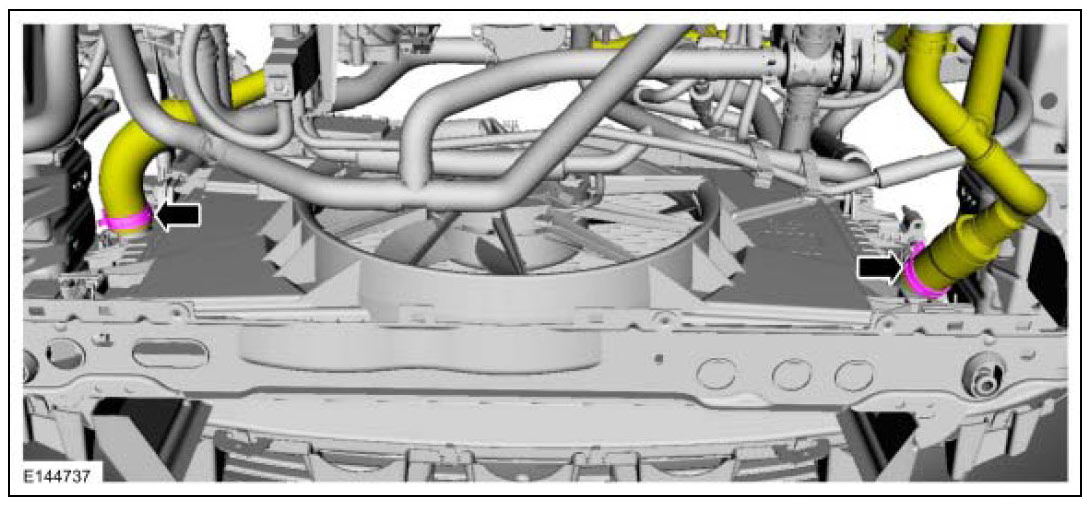

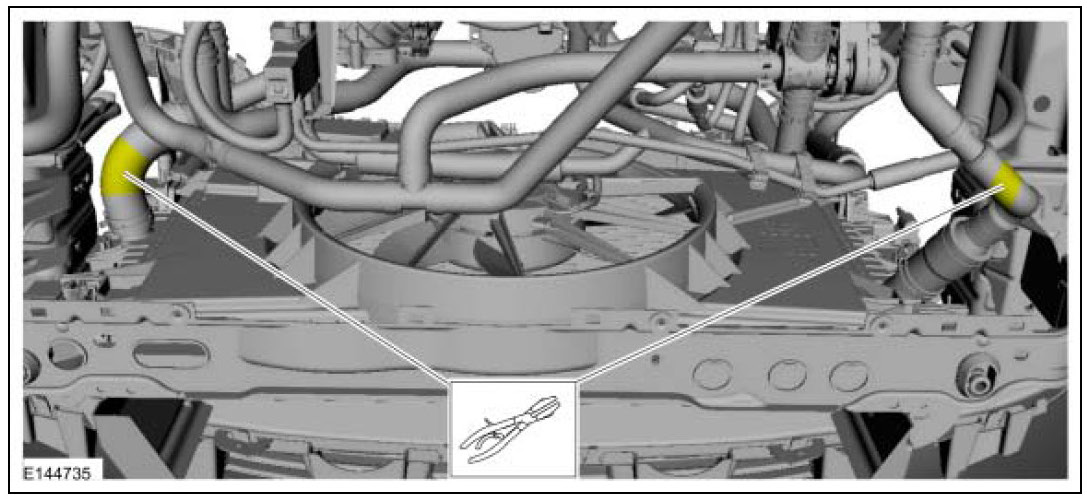

7. NOTE: Be prepared to capture escaping fluid.

8.

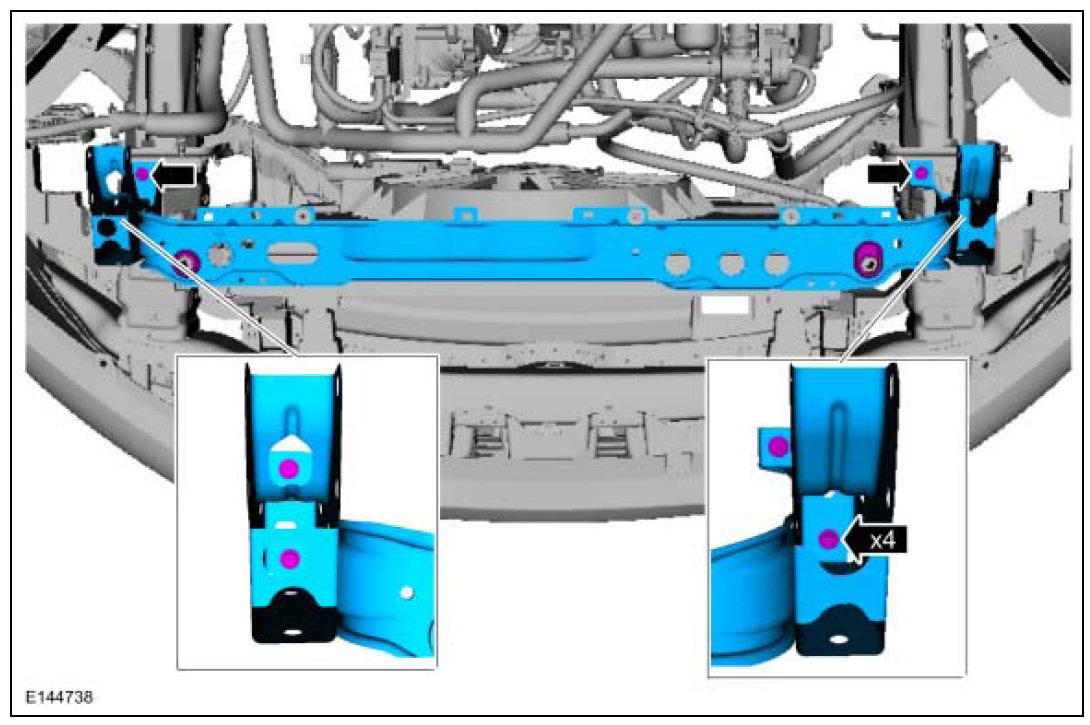

9. Both sides.
Torque: 25 Nm

10. Torque: 25 Nm

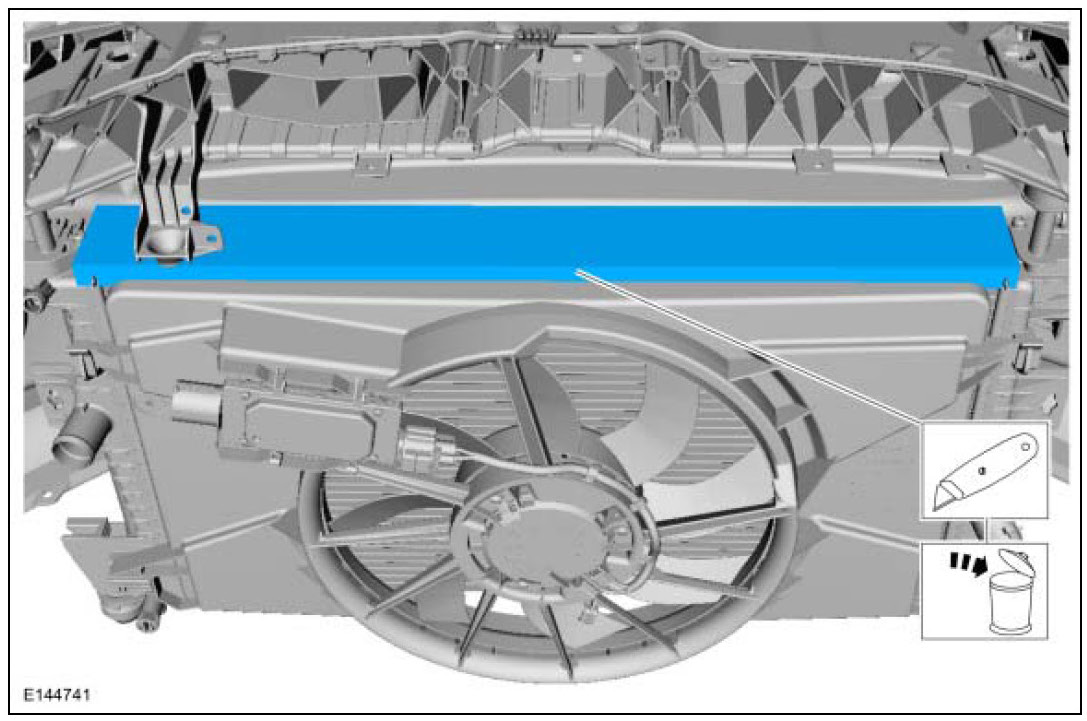

11. General Equipment: Knife

12.

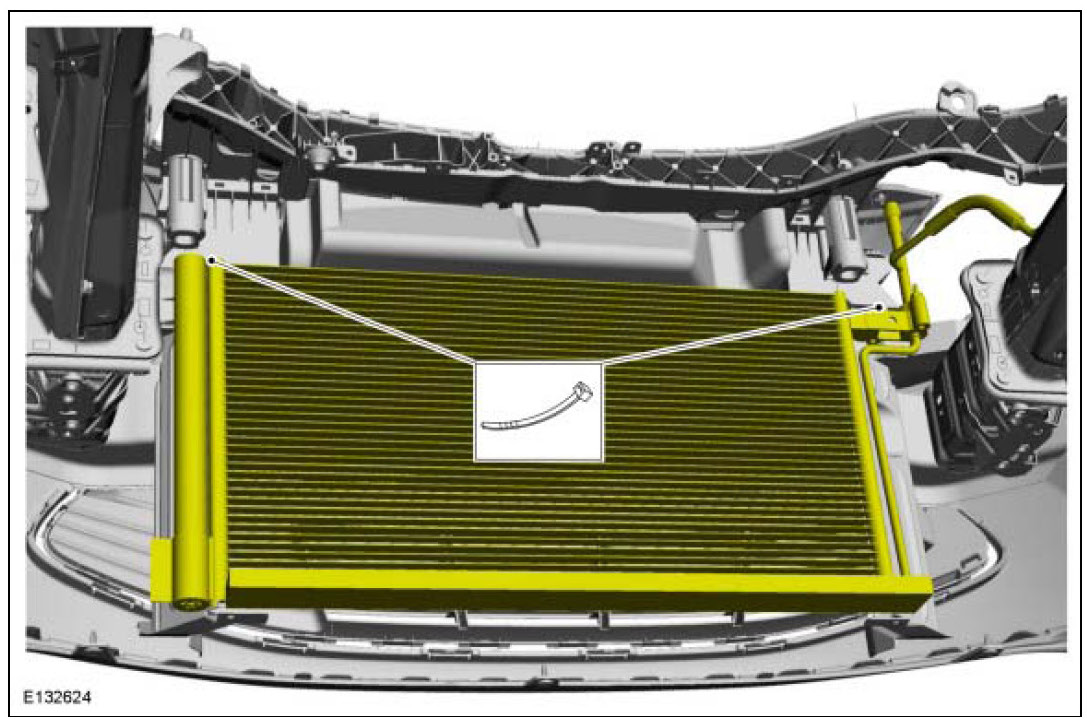

13. General Equipment: Cable Ties

14.

Installation

1. To install, reverse the removal procedure.
2.

3. Refer to: Cooling System Filling and Bleeding. Service and Repair
