Radiator Grille




Radiator Grille

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

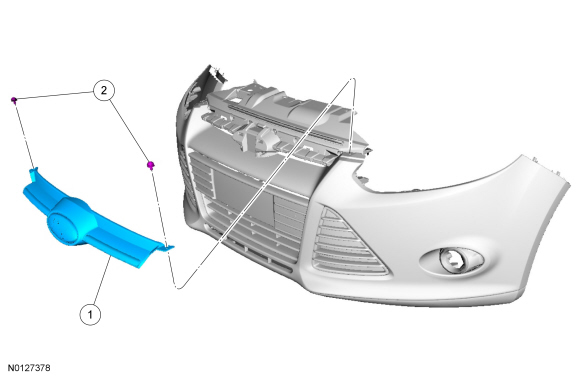

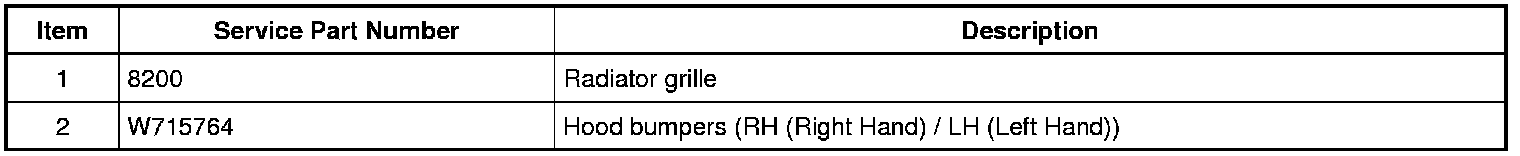

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front bumper cover. REFER to Bumper Cover - Front .

2.

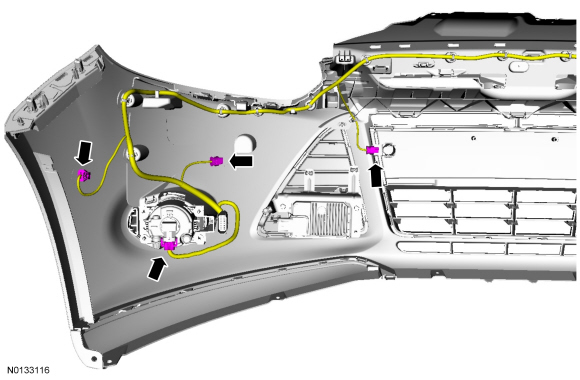

3. NOTE: LH (Left Hand) side shown RH (Right Hand) side similar.
For vehicles equipped with foglamps and front parking aid, disconnect the 8 electrical connectors.





4. NOTE: Front bumper cover wire harness removed for clarity.

NOTE: LH (Left Hand) side shown RH (Right Hand) side similar.
Release the 14 radiator sight shield clips and remove the radiator sight shield.





5. Release the 12 radiator grille clips from the front bumper cover and remove the radiator grille.





Installation

1. To install, reverse the removal procedure.
