Brake Shoe: Adjustments

Brake Shoe Adjustment

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

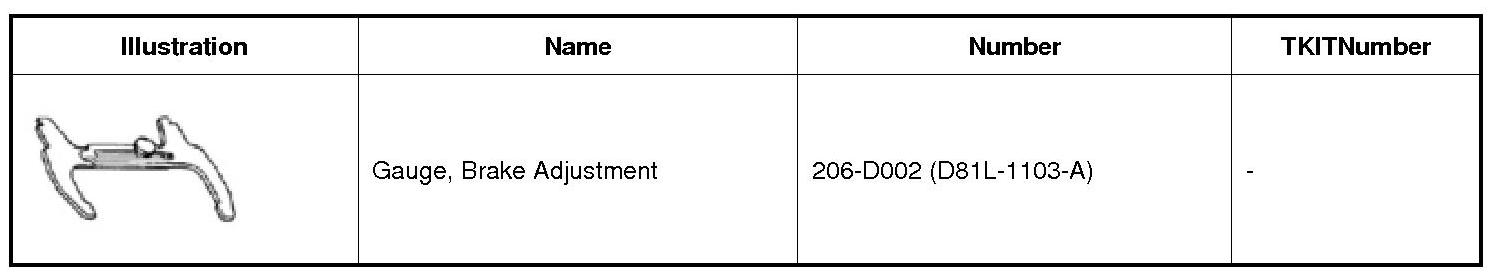

Special Tool(s)

General Procedure

1. Remove the brake drum. REFER to Brake Drum .

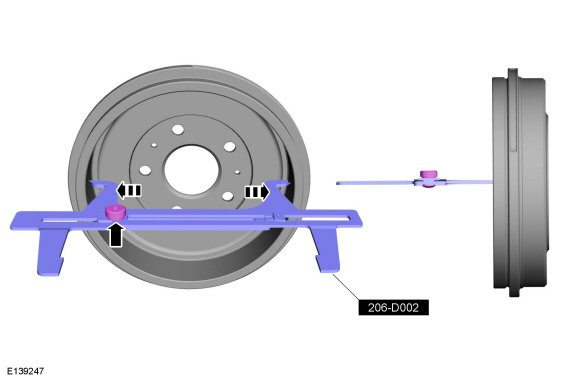

2. Using 206-D002 (D81L-1103-A) , measure the inside diameter of the brake drum.

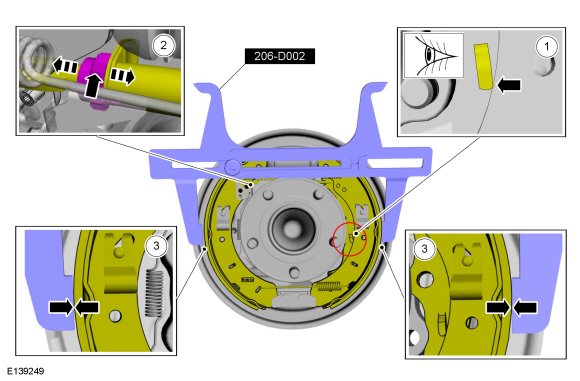

3. Position 206-D002 (D81L-1103-A) on the brake shoes and linings and adjust accordingly.

4. Install the brake drum.
