Brake Fluid Reservoir: Service and Repair

Brake Fluid Reservoir

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

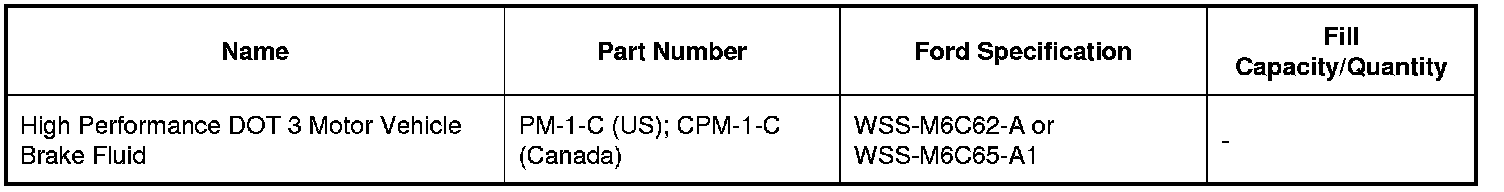

Material(s)

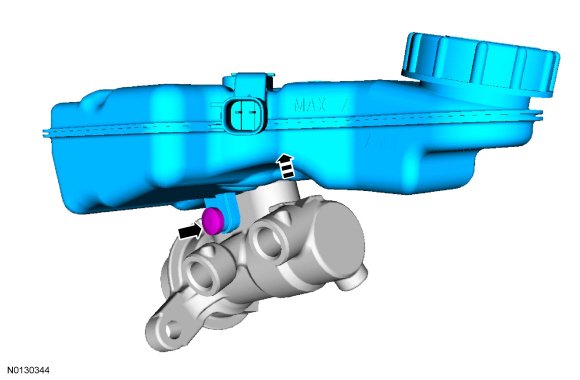

Exploded View










Removal

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

1. Remove the brake master cylinder. REFER to Brake Master Cylinder .

2. Remove the brake fluid reservoir pin bolt and the brake fluid reservoir.






3. Remove and discard the 2 brake fluid reservoir seals.





Installation

1. NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.
To install, reverse the removal procedure.

- Bleed the brake system. REFER to Brake System Bleeding .
- If equipped with a manual transmission, bleed the clutch master cylinder. REFER to Clutch System Bleeding .
