Diagnostic Routine F

Diagnostic Routine F

Diagnostic Overview

The Flash-To-Pass Function Is Inoperative

Normal Operation and Fault Conditions

REFER to Flash-To-Pass .

Visual Inspection and Diagnostic Pre-checks

- Inspect the multifunction switch for damage.

Pinpoint Test

1. CHECK THE HIGH BEAM OPERATION

1. Ignition ON.

2. Place the headlamp switch in the HEADLAMPS ON position.

3. Activate and deactivate the high beams using the high beam function of the multifunction switch.

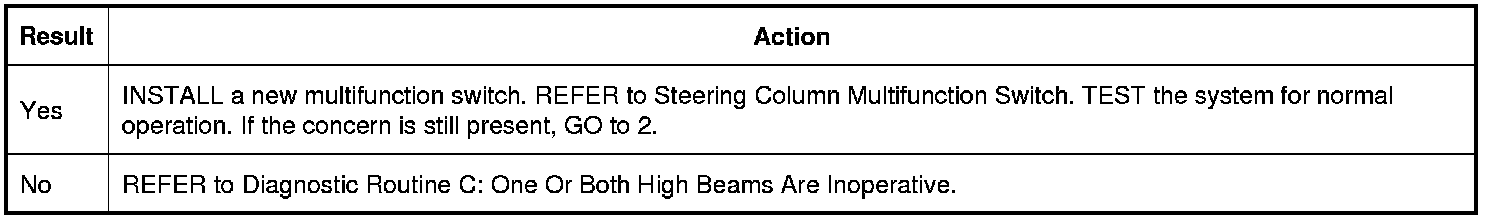

Do the high beams operate correctly?







2. CHECK FOR CORRECT SASM (Steering Angle Sensor Module) OPERATION

1. Disconnect and inspect all SASM (Steering Angle Sensor Module) connectors.

2. Repair:

- corrosion (install new connector or terminals- clean module pins)
- damaged or bent pins- install new terminals/pins
- pushed-out pins- install new pins as necessary

3. Reconnect the SASM (Steering Angle Sensor Module) connectors. Make sure they seat and latch correctly.

4. Operate the system and determine if the concern is still present.

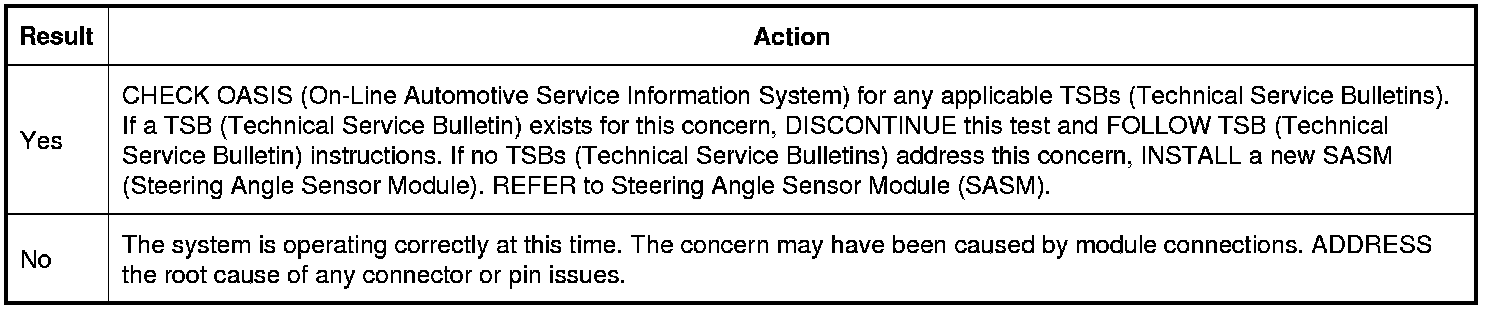

Is the concern still present?
