Symptom Related Diagnostic Procedures




Symptom Chart(s)

Symptom Chart: Safety Belt System

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

Preliminary Inspection

Before diagnosing or repairing the safety belt system, inspect the following items:

- Safety belt webbing integrity (torn, frayed, cut or stretched)

- Safety belt buckle and tongue assembly

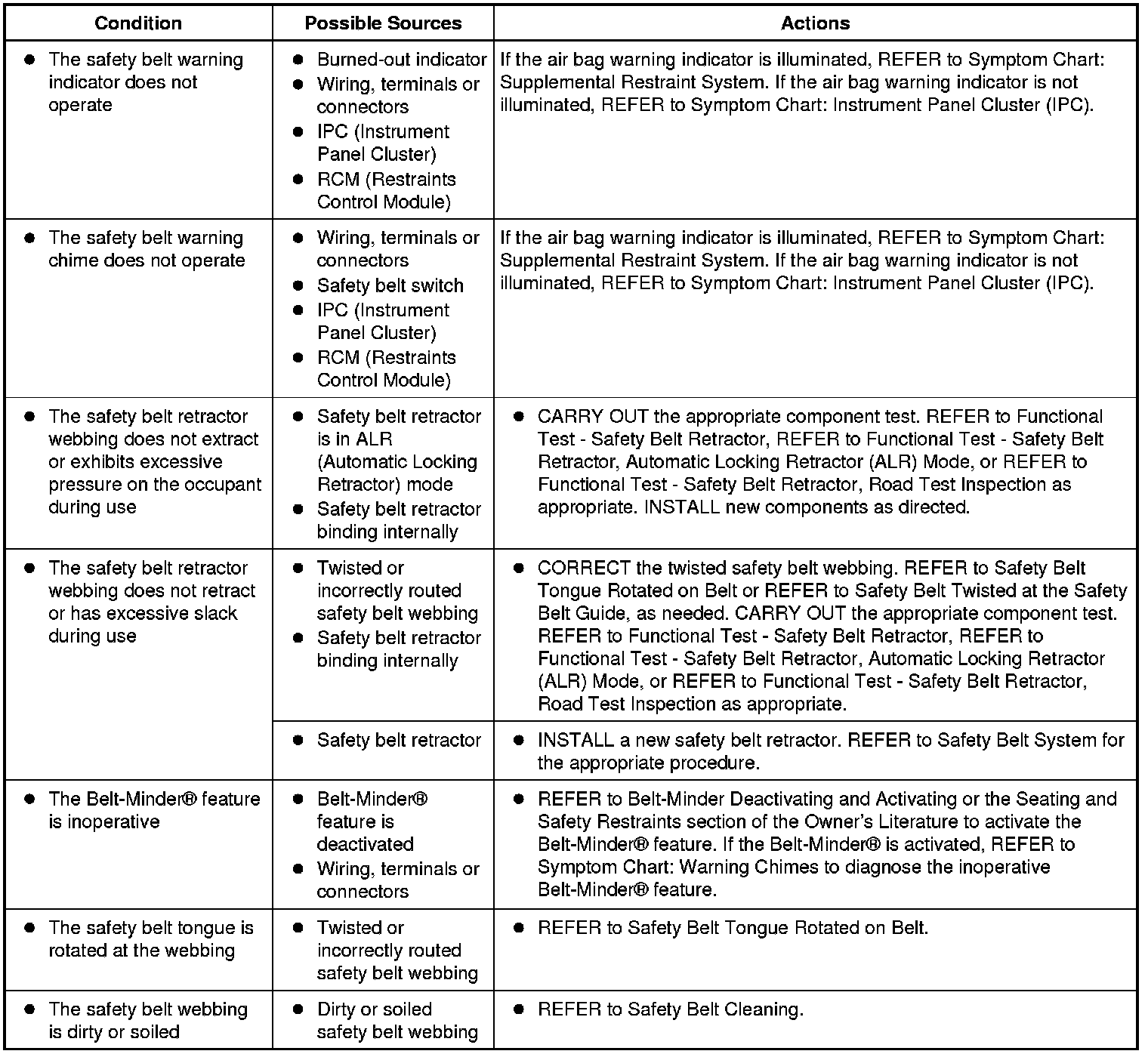

Symptom Chart
