without Door Modules (without Window One-touch Up)

Window Glass - Front Door

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Removal

1. Remove the front door speaker.Base: REFER to Speaker - Door ,Premium: REFER to Speaker - Door orSony(R) Sound: REFER to Speaker - Door .

2. Remove the front door watershield.

3. Connect the window control switch.

4. Turn the ignition to the ON position.

5. Fully lower the window glass.

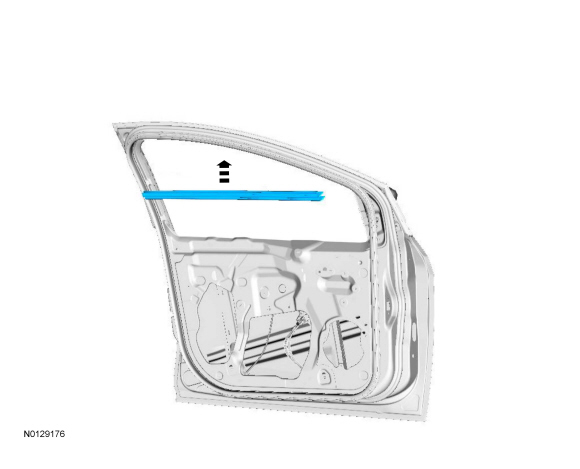

6. Remove the interior door window glass belt moulding.

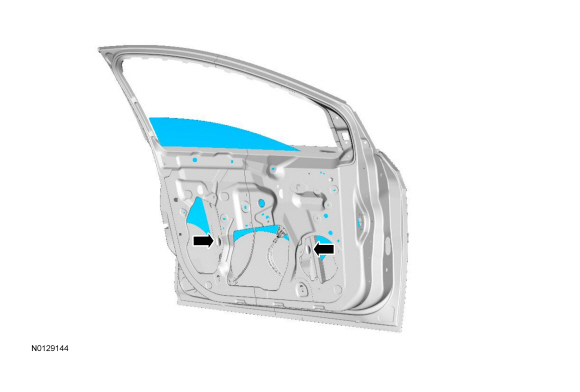

7. Position the window glass to gain access to the window glass retaining tabs.

8. Insert a flat-blade screwdriver and release the window glass retaining tabs, while lifting the window glass upward.





9. Lift the window glass upward and remove the window glass through the exterior side of the door.





Installation

1. Install the window glass through the exterior side of the door.

2. Lower the window glass onto the window glass retaining tabs.

3. Fully lower the window glass.

4. Install the interior door window glass belt moulding.

5. Install the front door watershield.

6. Install the front door speaker.Base: REFER to Speaker - Door ,Premium: REFER to Speaker - Door orSony(R) Sound: REFER to Speaker - Door .
