Washer Pump
Washer Pump
WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

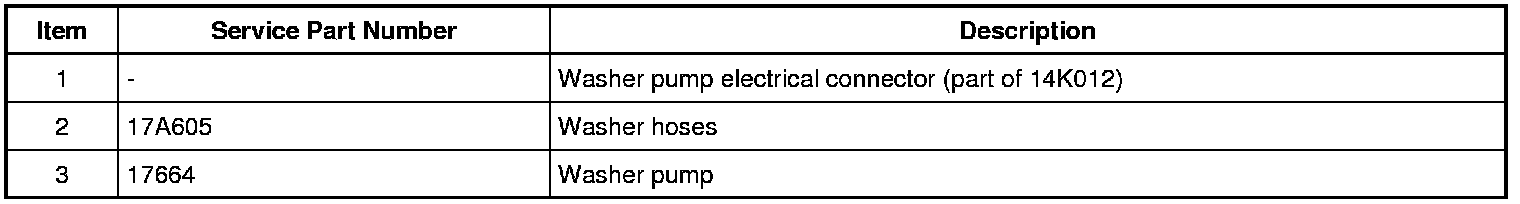

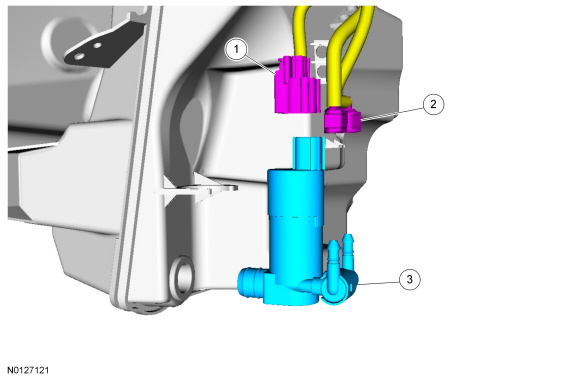

Exploded View
5 door shown, 4 door similar
Removal
1. Raise the vehicle on hoist. REFER to Jacking and Lifting Vehicle Lifting.
2. If equipped.
3.
4. Position a drain pan under the washer reservoir to catch the washer fluid.
5. Disconnect the washer pump.
1. 4-door sedan connections
2. 5-door hatchback connections
6.
Installation
1. To install, reverse the removal procedure.
