Register - Driver and Passenger Side

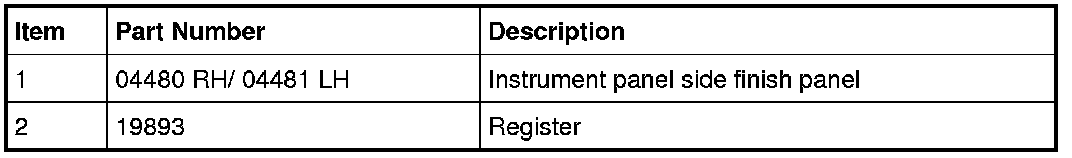

Register - Driver and Passenger Side, Fusion/MilanRemoval and InstallationNOTE: Passenger side register shown, driver side similar.
1.
Remove the instrument panel end panel.
2.
Working through the instrument panel end panel opening, release the 2 lower register clips and remove the driver or passenger side instrument panel register.
3.
To install, reverse the removal procedure.
