Front Bumper Cover / Fascia: Service and Repair

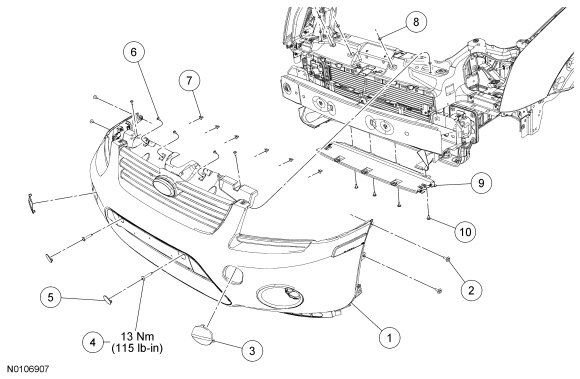

Bumper Cover - Front









Removal and Installation

1. Remove the fender splash shields.

2. Remove the 5 radiator sight shield screws.

3. Remove the 4 front bumper cover side bolts (2 each side).

4. Remove the fender mouldings.

5. If equipped, disconnect the fog lamp electrical connector.

6. Disconnect the side marker lamp electrical connector.

7. Remove the 2 front bumper cover front bolt covers.

8. Remove the 2 front bumper cover-to-bumper front bolts.
- To install, tighten to 13 Nm (115 lb-in).


9. Remove the front bumper cover.

10. To install, reverse the removal procedure.
