Air Duct: Service and Repair

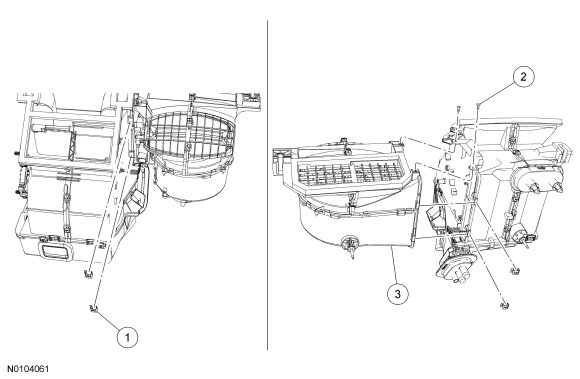

Air Inlet DuctRemoval and Installation 1.
Remove the
heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing .
2.
Remove the floor duct screw and the floor duct.
3.
Remove the 2 air inlet duct screws.
4.
Remove the 4 air inlet duct clips.
5.
Detach and remove the air inlet duct.
6.
To install, reverse the removal procedure.
