Rear Suspension

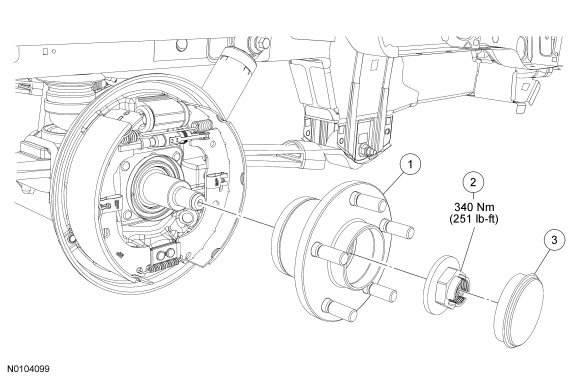

Wheel Bearing and Wheel HubRemoval and Installation 1.
Remove the brake drum.
2.
Remove the dust cap.
3.
Remove and discard the
wheel hub nut.
-
To install, tighten the new nut to 340 Nm (251 lb-ft).
4.
Remove the
wheel bearing and
wheel hub.
5.
To install, reverse the removal procedure.
