Coolant - Electric Drive: Service and Repair

COOLANT FILTER

Special Tool(s)/General Equipment
- Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before begining any service procedure in this section, REFER to Safety Warning. Service Precautions Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions. Service Precautions

2. Refer to: Jack and Lifting. Service and Repair

3.

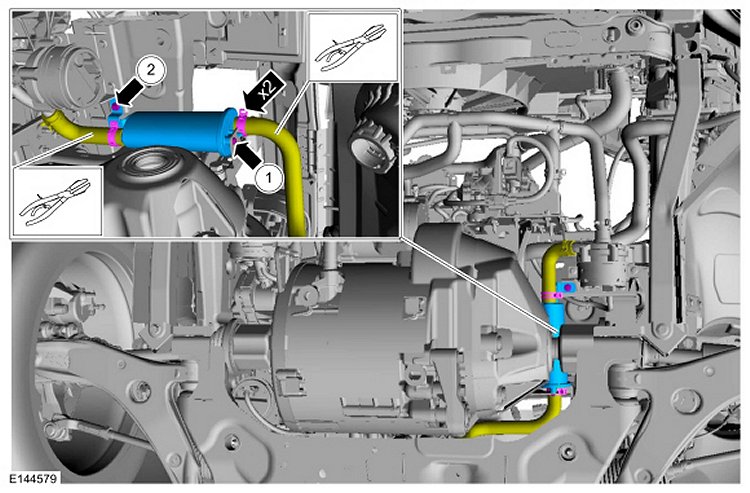

4. NOTE: Be prepared to capture escaping fluid.

General Equipment: Hose Clamp Remover/Installer
Torque:
1. 2 Nm
2. 10 Nm






Installation

1. To install, reverse the removal procedure.

2. Refer to: Cooling System Filling and Bleeding. Service and Repair
