Radiator: Service and Repair



Radiator

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions. Engine Cooling System Health and Safety Precautions

2. Refer to: Cooling Fan Motor and Shroud.

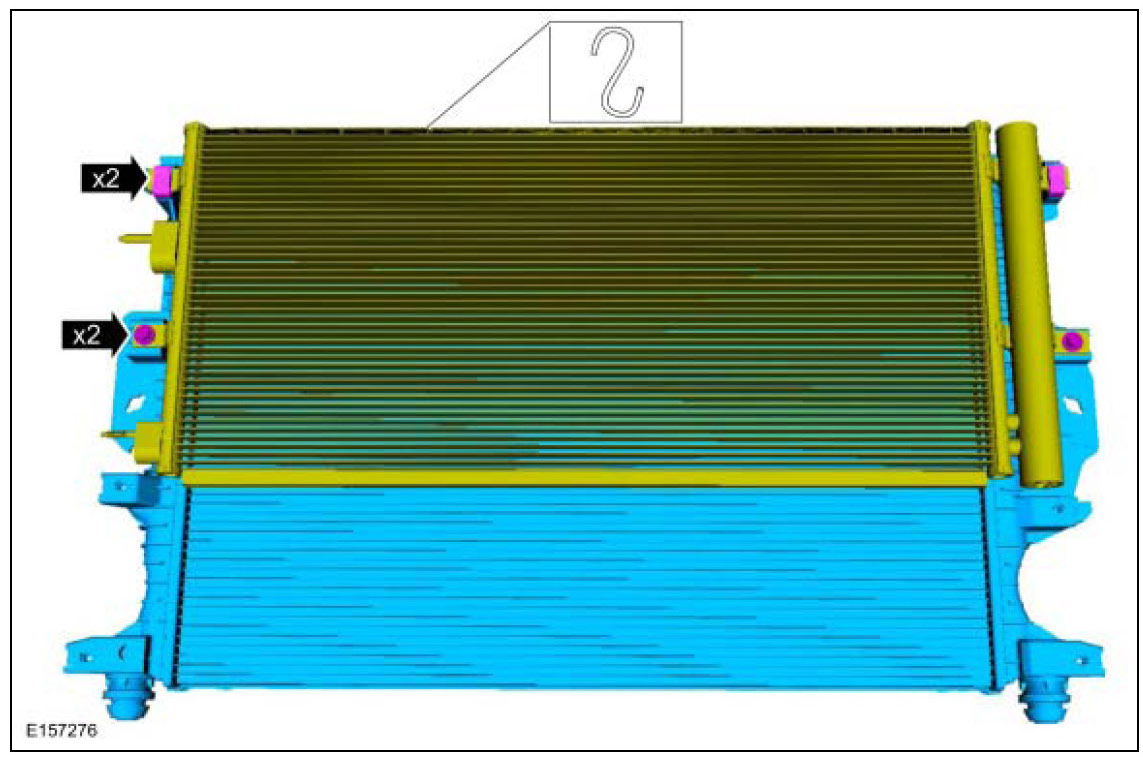

3. Torque: 5 Nm

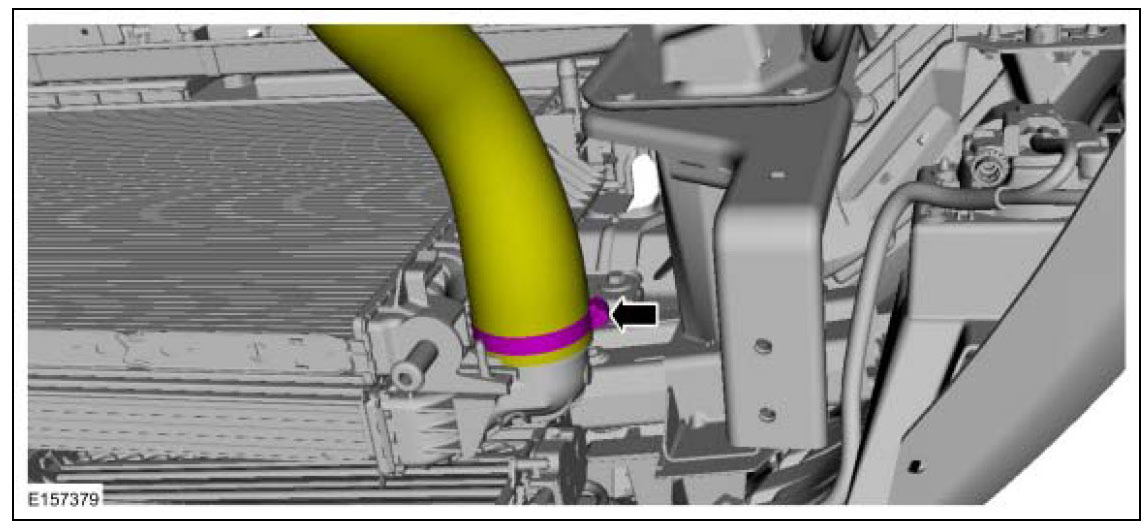

4. Torque: 6 Nm

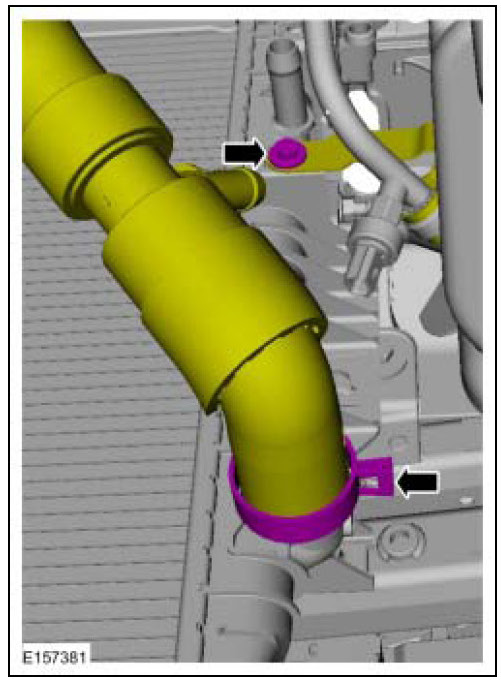

5. General Equipment: Hose Clamp Remover/Installer
Torque: 7 Nm

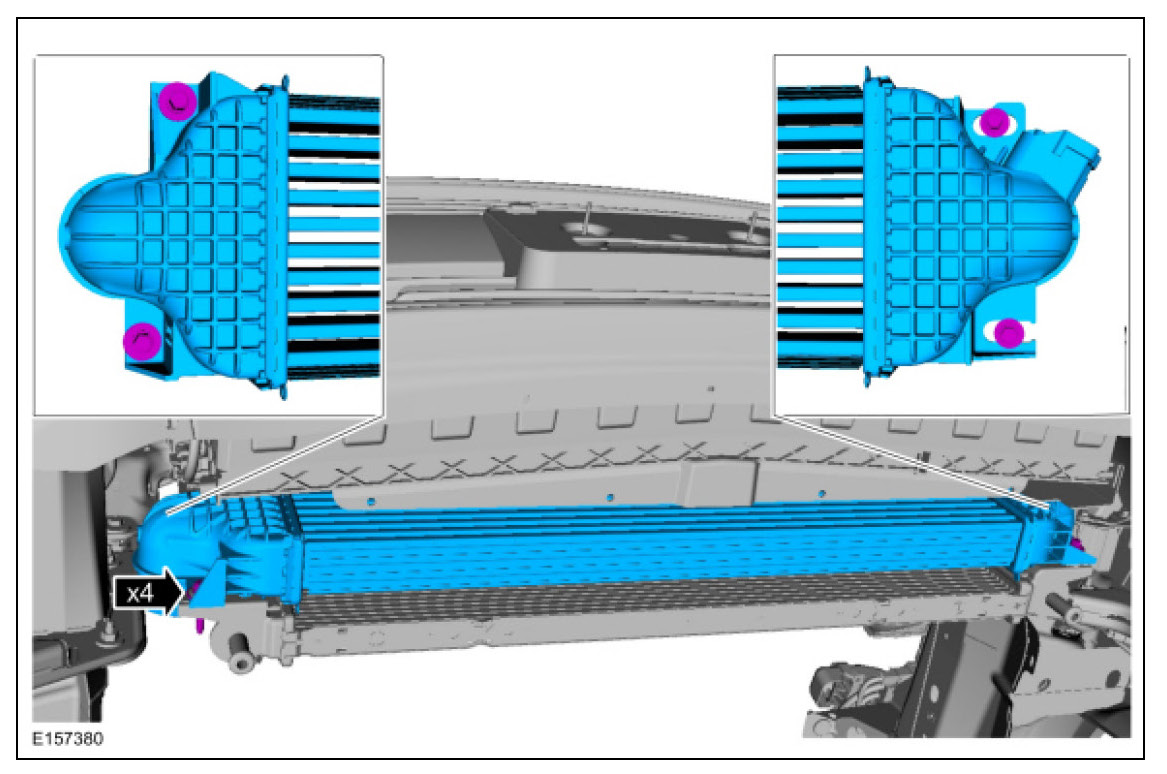

6. Torque: 6 Nm







Installation

1. To install, reverse the removal procedure.
