Installation

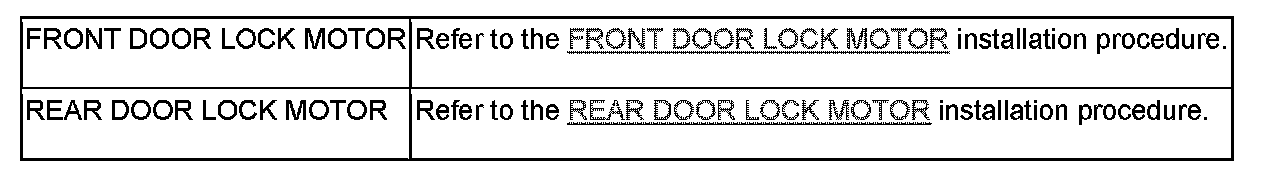

INSTALLATION





FRONT DOOR LOCK MOTOR




1. Install the door lock motor and connect the electrical connectors.
2. Install the lock cylinder.
3. Install the watershield.
4. Install the speaker.
5. Install the door module.
6. Install the RKE Antenna.
7. Install the door trim panel.
8. Connect the battery negative cable.

REAR DOOR LOCK MOTOR




1. Install the door lock motor.
2. Connect the electrical connectors and mechanical connections.
3. Install the door lock motor fasteners.
4. Install the rear door trim panel.
5. Connect the battery negative cable.
