Connecting Rod: Service and Repair

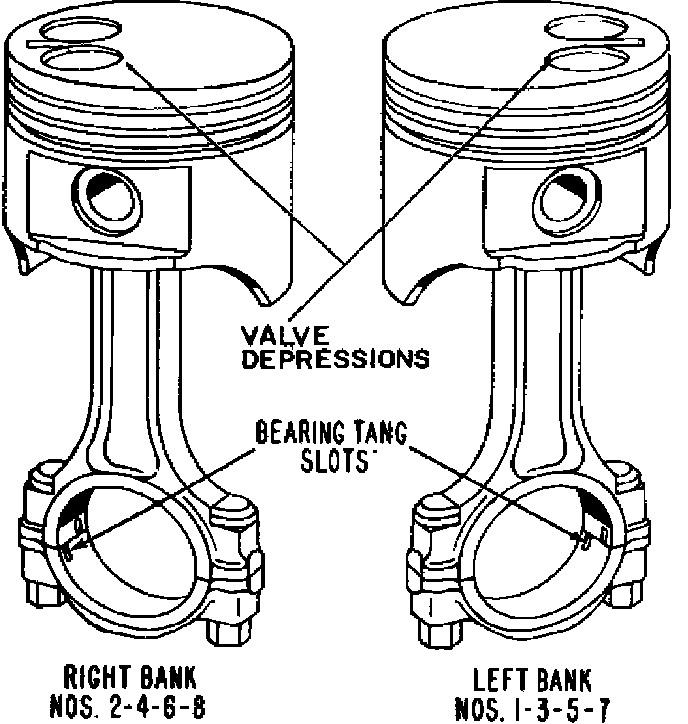

Fig. 25 Piston & rod assembly:
Assemble
piston to rod and install into cylinder block. Install with depression on top of piston toward outside of engine,
Fig. 25. Install
connecting rod bearing with tang slots positioned on side opposite
camshaft.
