Description

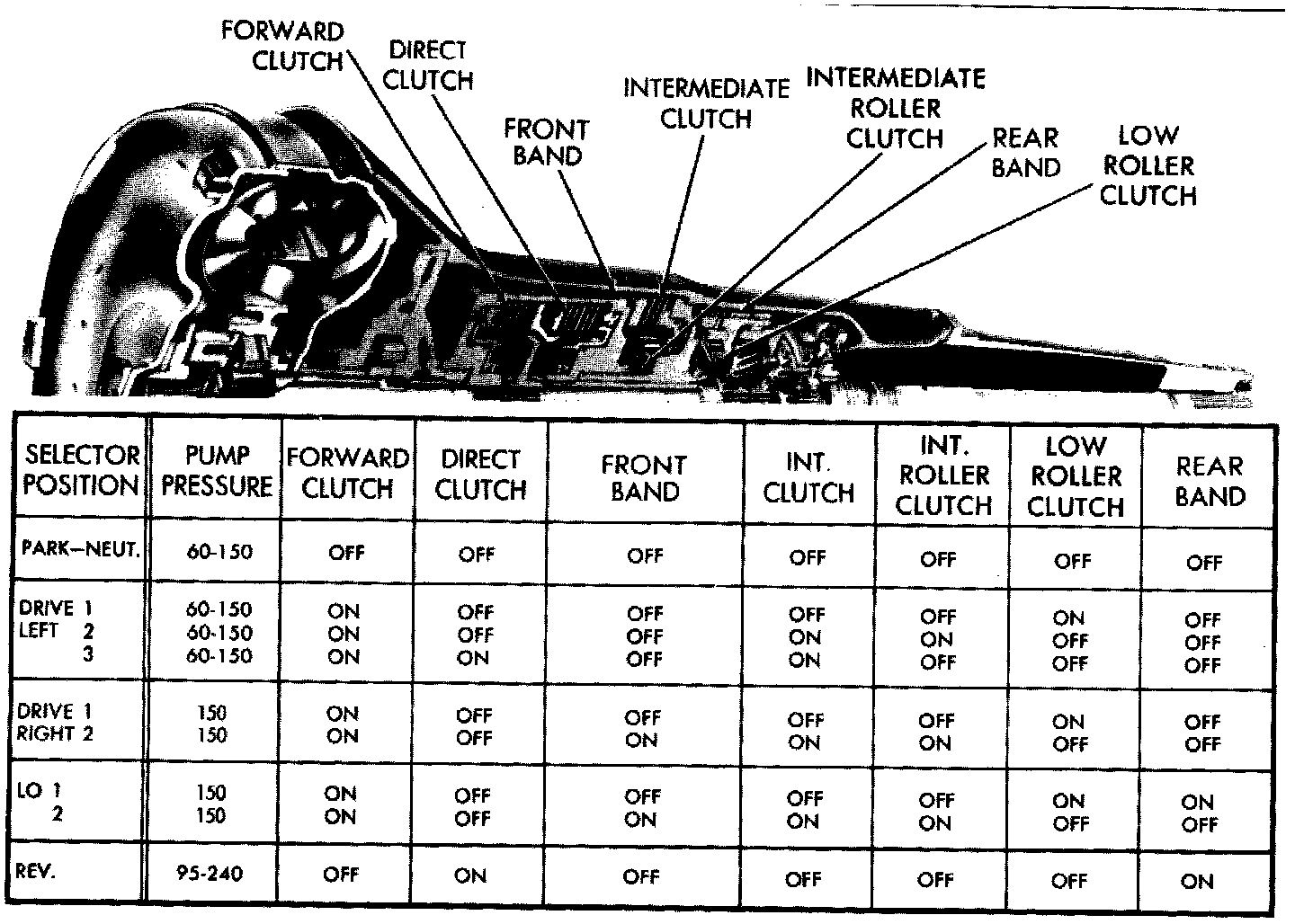

Figure illustrates the applications of the bans and clutches in all phases of operation. In Neutral or Park no bands or clutches are applied, therefore, no power is transmitted.
