Planetary Gear

Planetary Gear

Remove or Disconnect

Figure 19- New Process 207 Transfer Case:

Figure 20- New Process 207 Transfer Case:

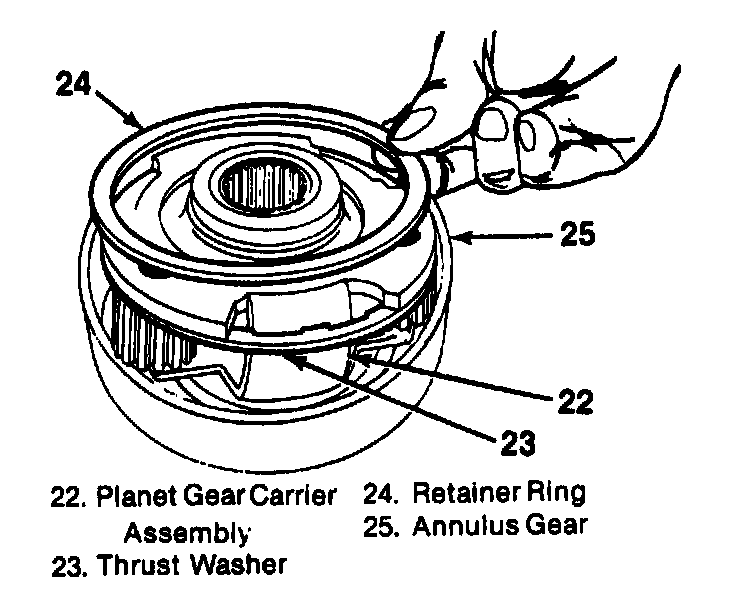

Figure 37- Planetary Gear Thrust Rings:

1. Snap ring (24) retaining the planetary gear (22) in the annulus gear (25).
2. Outer thrust ring (23). Discard.
3. Planetary gear (22) from the annulus gear (25).
4. Inner thrust ring (23) from the planetary assembly. Discard the ring.

Install or Connect

Figure 19- New Process 207 Transfer Case:

Figure 20- New Process 207 Transfer Case:

Figure 37- Planetary Gear Thrust Rings:

1. Inner thrust ring (23) on the planetary assembly (22).
2. Planetary assembly (22) into the annulus gear (25).
3. Outer thrust ring (23).
4. Snap ring (24).
