Cruise Control Servo - Test Revision

FILE IN SECTION: 9 - Accessories

BULLETIN NO.: 56-90-03

DATE: June, 1995

SUBJECT:
Section 9B - Cruise Control - Cruise Control Servo Test

MODELS:
1992 Chevrolet and GMC Truck M/L Models

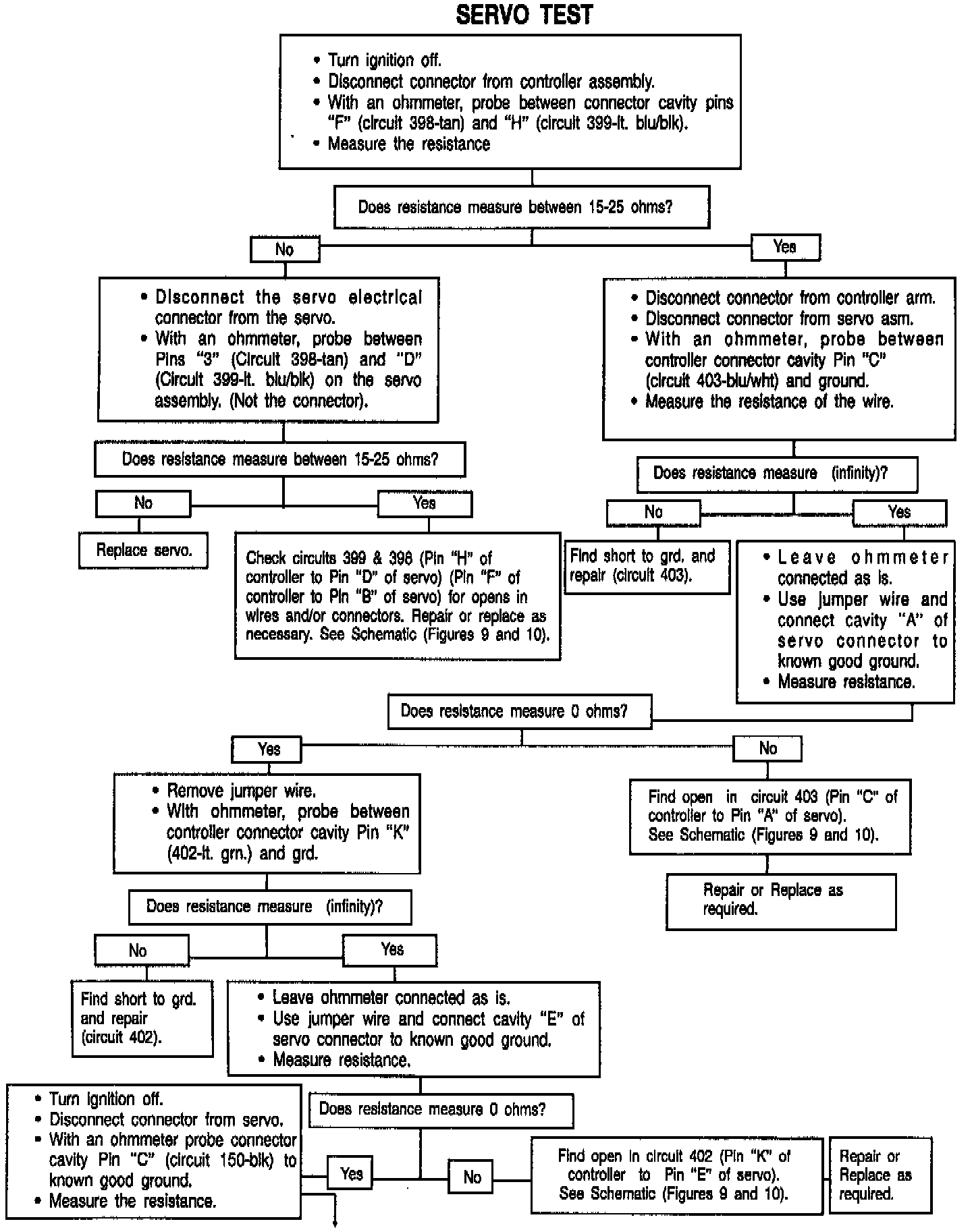

This bulletin has been issued to update Figure 3 on Page 5 in Section 9B of the 1992 M/L Service Manual (P/N X-9230 for GMC, P/N ST-372-92 for Chevrolet). The cruise control servo diagnostic chart has been updated.
