Vacuum Harness HVAC: Locations

Vacuum Tank And Lines:

VACUUM LINES

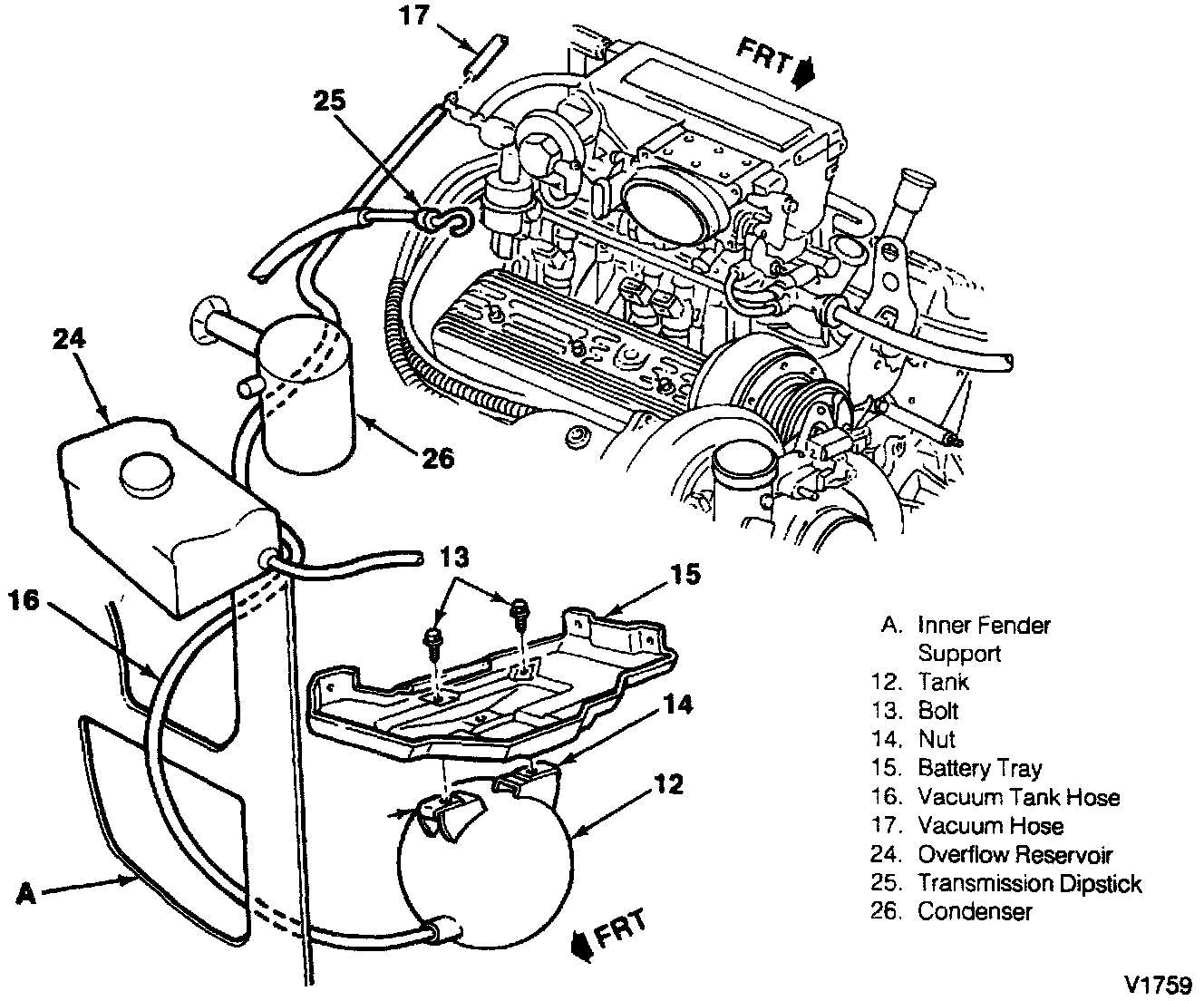

For vacuum line routing, refer to accompanying figure. The vacuum tank hose (16) is routed along the right side of engine to vacuum tank (12) under battery tray (15). The vacuum hose (17) is routed into cowling with Wiring harness.
