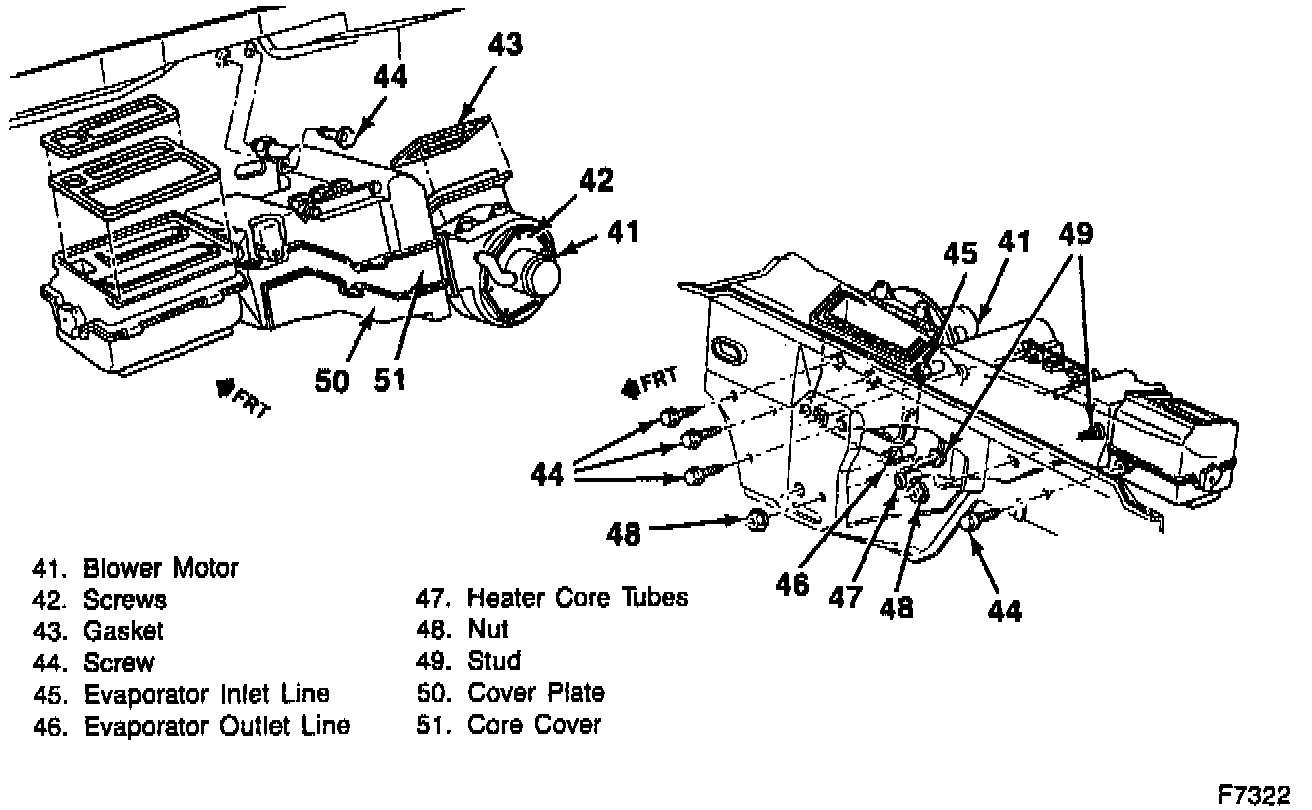

Blower Motor: Service and Repair

REMOVE OR DISCONNECT
1. Front screw from right door sill trim plate.
2. Right hinge pillar trim panel.
3. Electrical connectors, as necessary.
4. Blower motor cover.
5. Vent hose.
6. Courtesy light (if equipped).
- Loosen courtesy light screws and move light aside (if equipped).
7. Bolt from right dash support.
8. Blower motor flange screws.
9. Blower motor.
- May be necessary to pry back dash.
10. Blower motor fan.

INSTALL OR CONNECT
1. Blower motor fan.
2. Blower motor.
3. Blower motor flange screws.
4. Bolt to right dash support.
5. Courtesy light (if equipped)
6. Vent hose.
7. Blower motor cover.
8. Electrical connectors, as necessary.
9. Right hinge pillar trim panel.
10. Front screw from right door sill trim plate.
- Check circuit operation.
