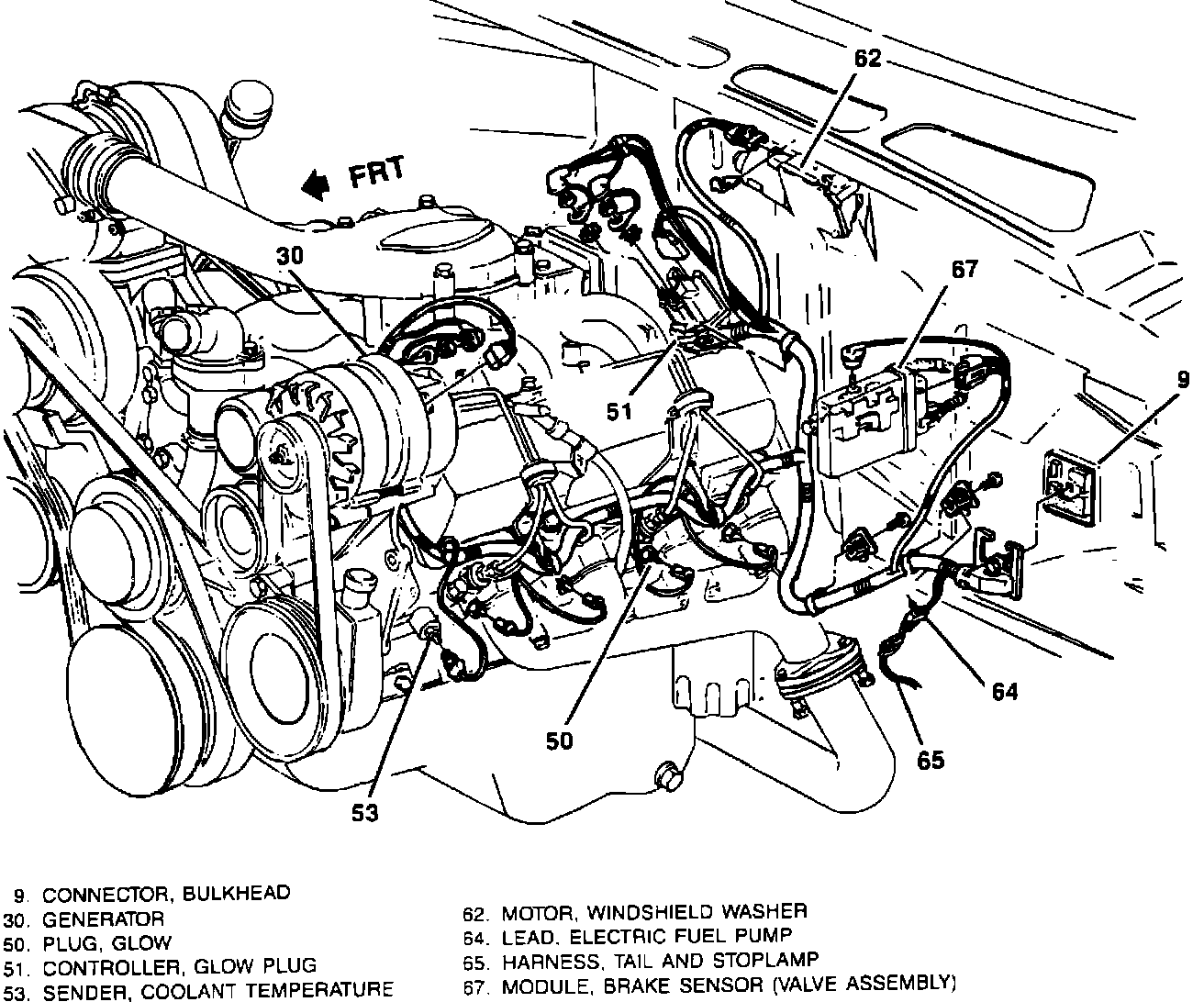

Left Side View

Pictorial View:

9. CONNECTOR, BULKHEAD
30. GENERATOR
50. PLUG, GLOW
51. CONTROLLER, GLOW PLUG
53. SENDER, COOLANT TEMPERATURE
62. MOTOR, WINDSHIELD WASHER
64. LEAD, ELECTRIC FUEL PUMP
65. HARNESS, TAIL AND STOPLAMP
67. MODULE, BRAKE SENSOR (VALVE ASSEMBLY)
