Convenience Center

Under LH side of I/P

Four-Wheel Drive Wiring

Cruise Control Wiring:

Cruise Control Wiring

Fog Lamp Wiring:

Fog Lamp Wiring

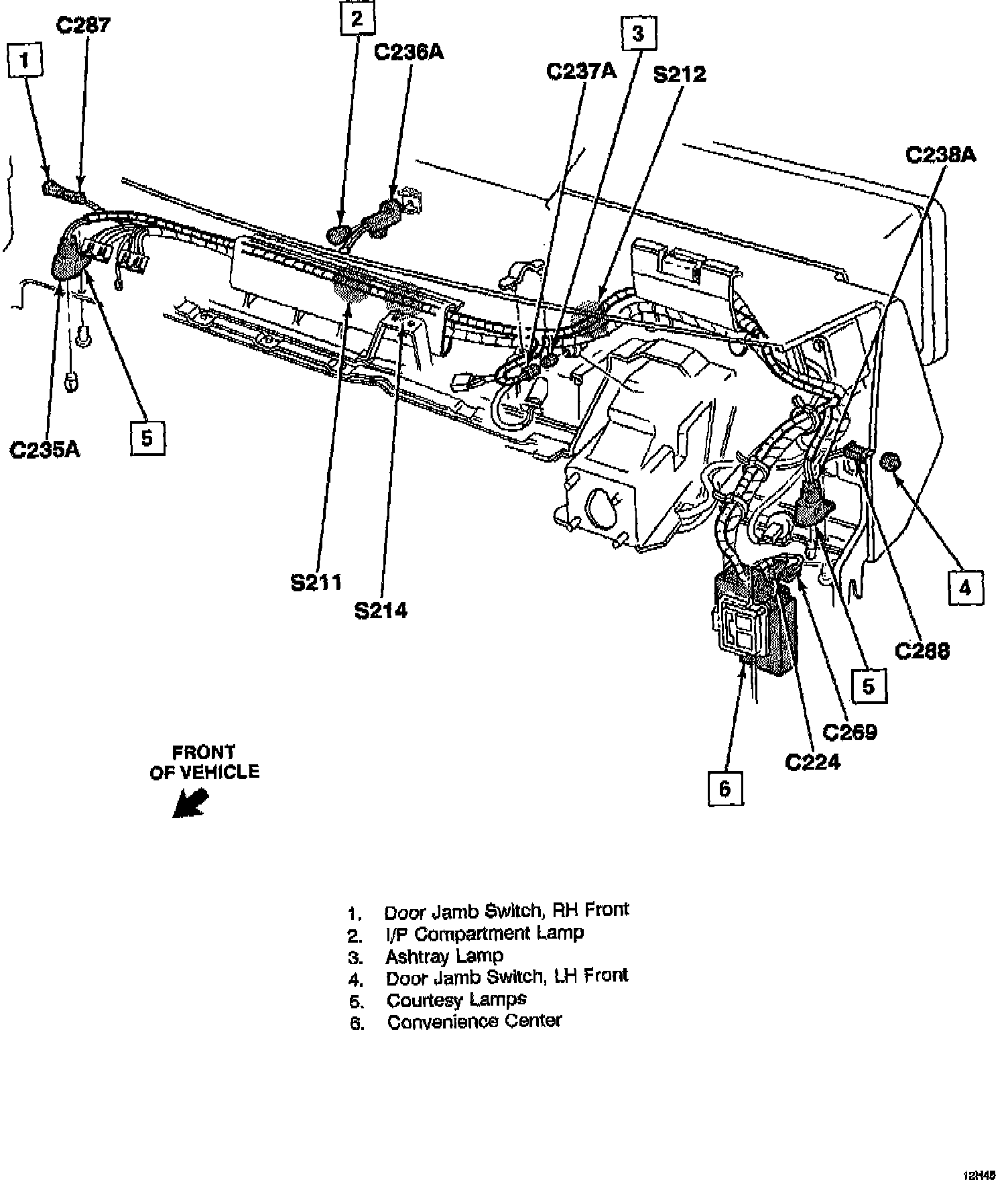

Convenience Lighting:

Convenience Lighting

Auxiliary Battery Wiring:

Auxiliary Battery Wiring

Roof Marker Lamp Wiring:

Roof Marker Lamp Wiring

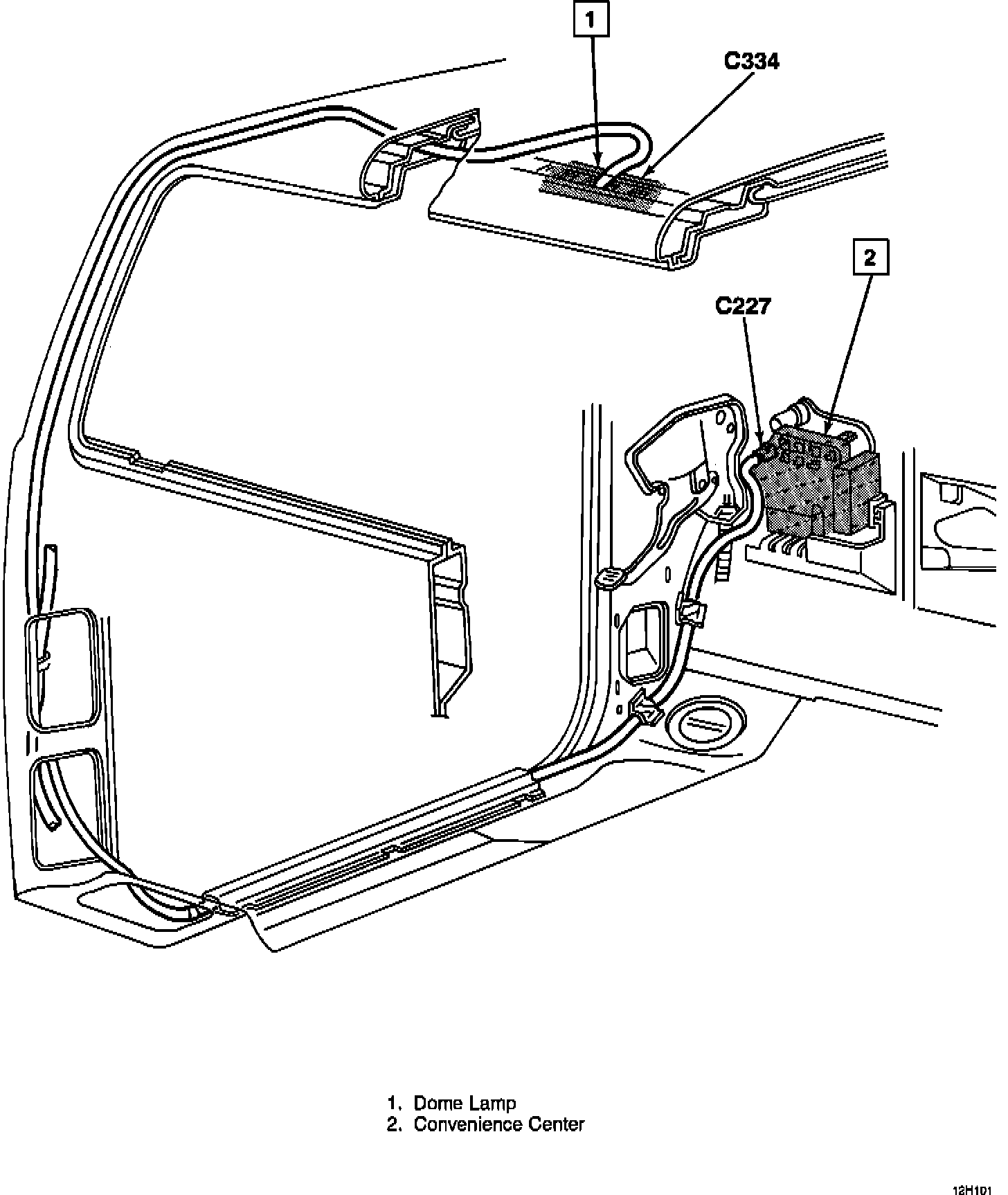

Dome Lamp Wiring - Except Crew Cab w/Convenience Package:

Dome Lamp Wiring (Except Crew Cab W/Convenience Package)

Cargo Lamp Wiring:

Cargo Lamp Wiring

Auxiliary Heater Front Wiring:

Auxiliary Heater Front Wiring

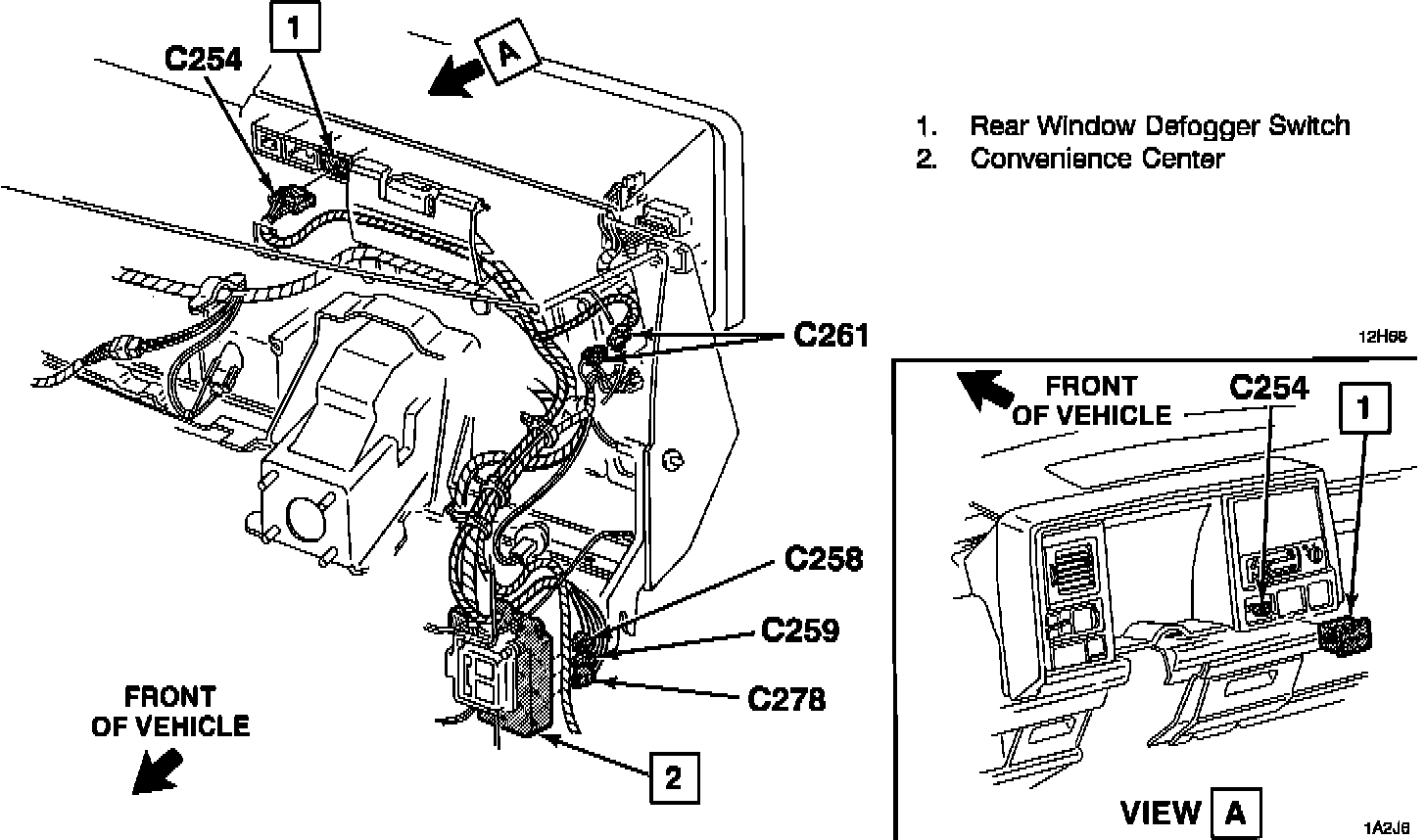

Rear Window Defogger Front Wiring - Utility And Suburban Shown (Extended And 4-Door Cabs Similar):

Rear Window Defogger Front Wiring

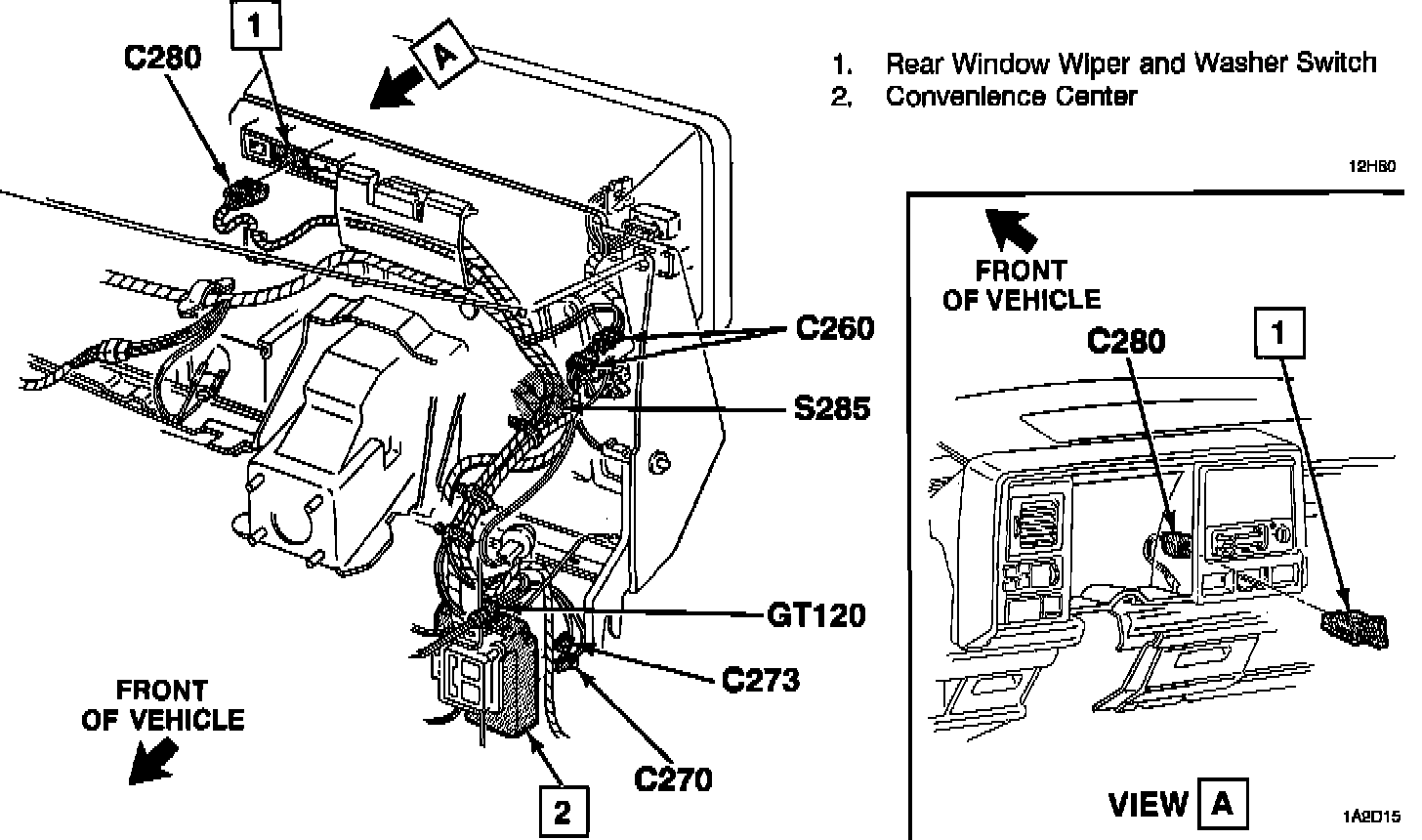

Rear Window Wiper And Washer Front Wiring:

Rear Window Wiper and Washer Front Wiring

Rear Window Release Rear Wiring - Models w/Endgate:

Rear Window Release Rear Wiring

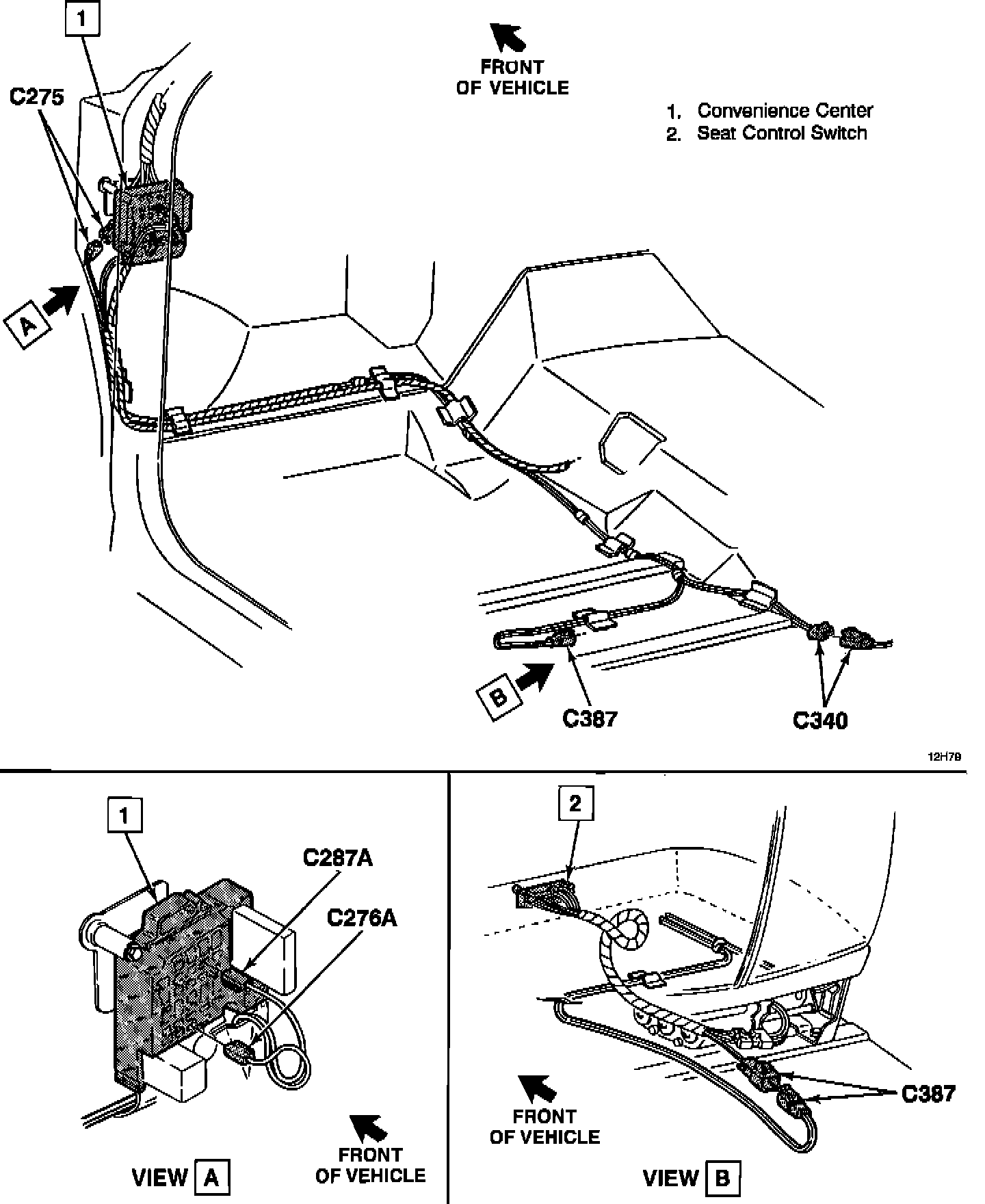

Power Seat Wiring:

Power Seat Wiring

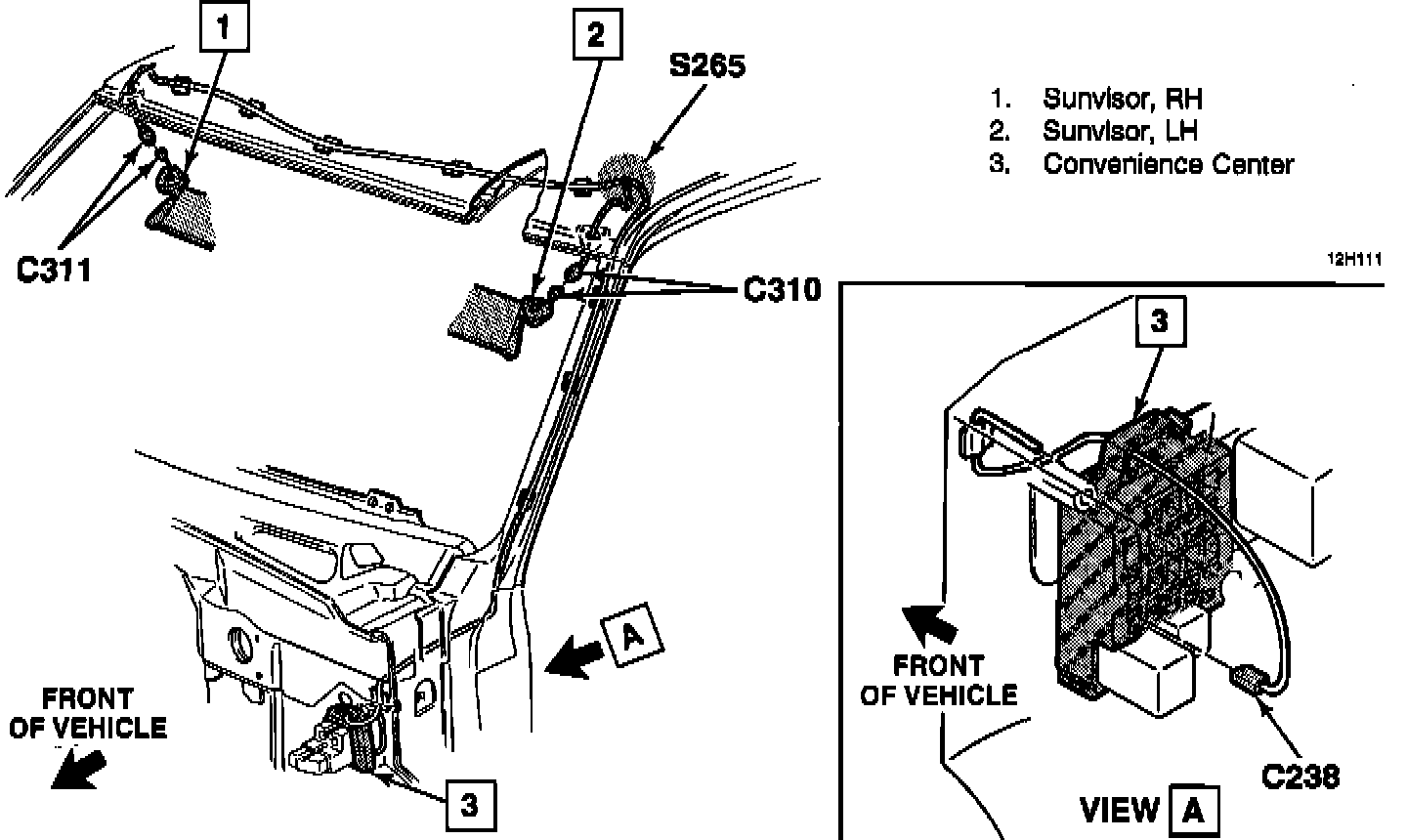

Sunshade Vanity Mirror Wiring:

Sunshade Vanity Mirror Wiring

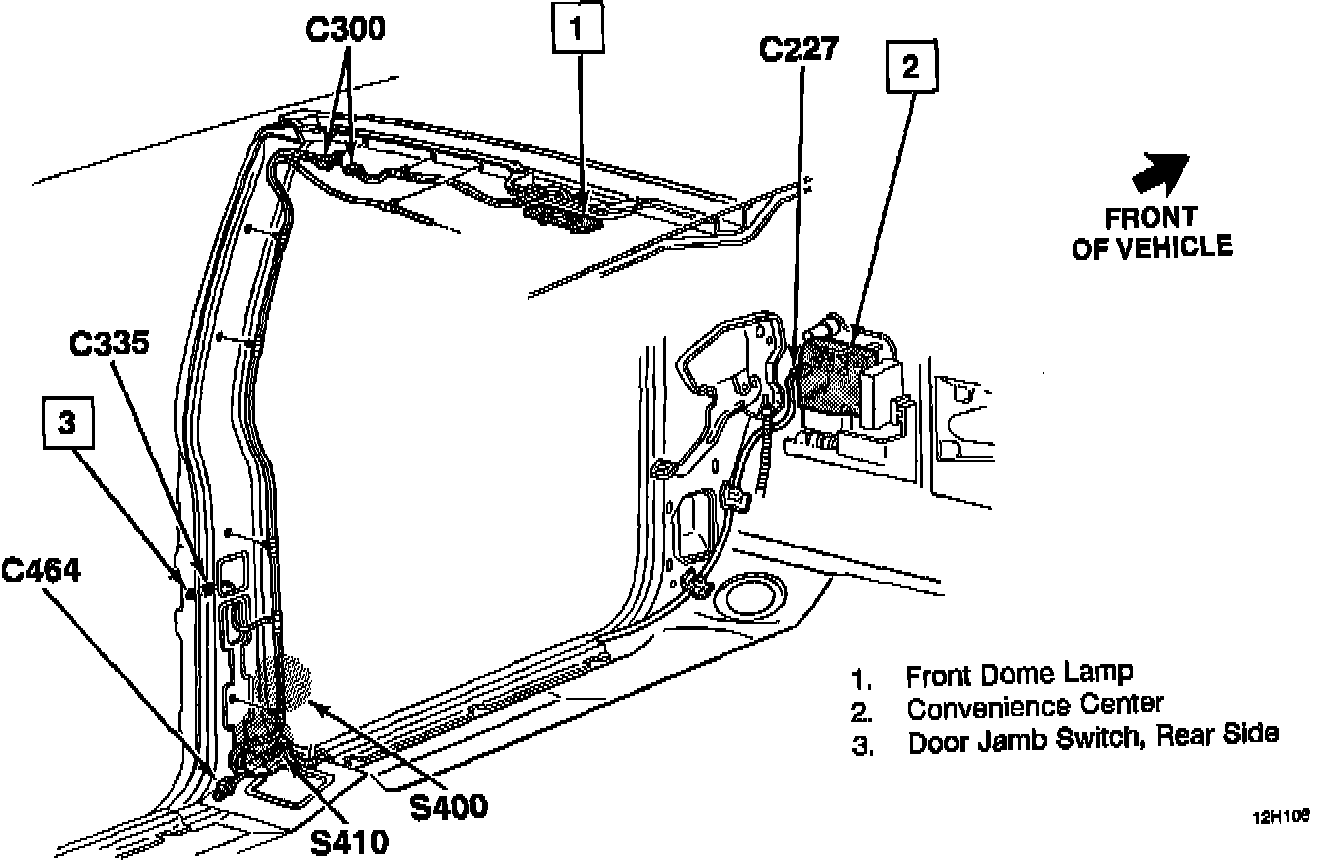

Front Dome Lamp Harness - Crew Cab w/Convenience Package:

Front Dome Lamp Harness (Crew Cab W/Convenience Package)
