EGR Control Solenoid: Service and Repair

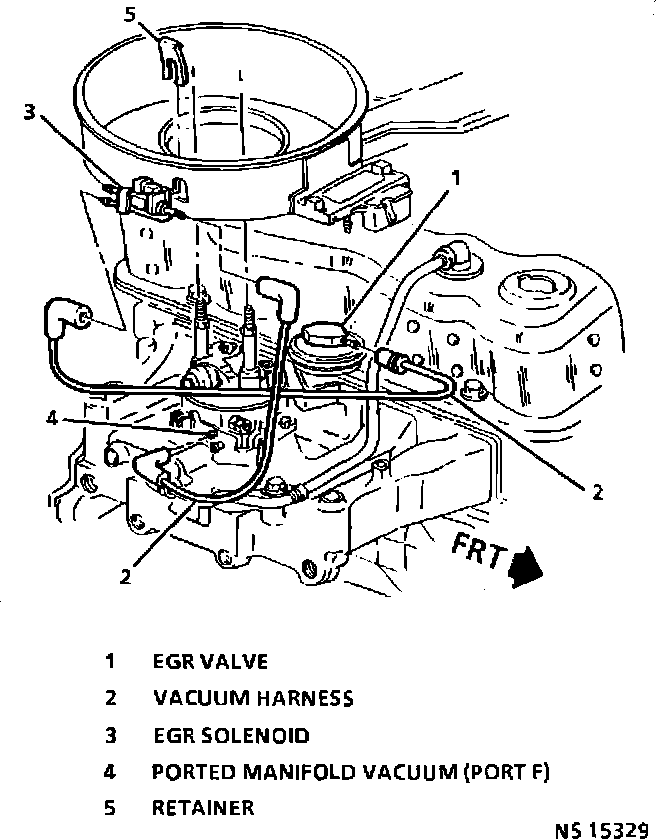

EGR AND SOLENOID 2.5L:

REMOVE OR DISCONNECT
- Negative battery cable.
- Electrical connector at solenoid.
- Vacuum hoses.
- Air cleaner cover.
- Retainer and solenoid.

INSTALL OR CONNECT
- Solenoid and retainer.
- Air cleaner cover.
- Vacuum hoses.
- Electrical connector to solenoid.
- Negative battery cable.
- Check system to ensure proper operation.
