Transfer Case: Adjustments

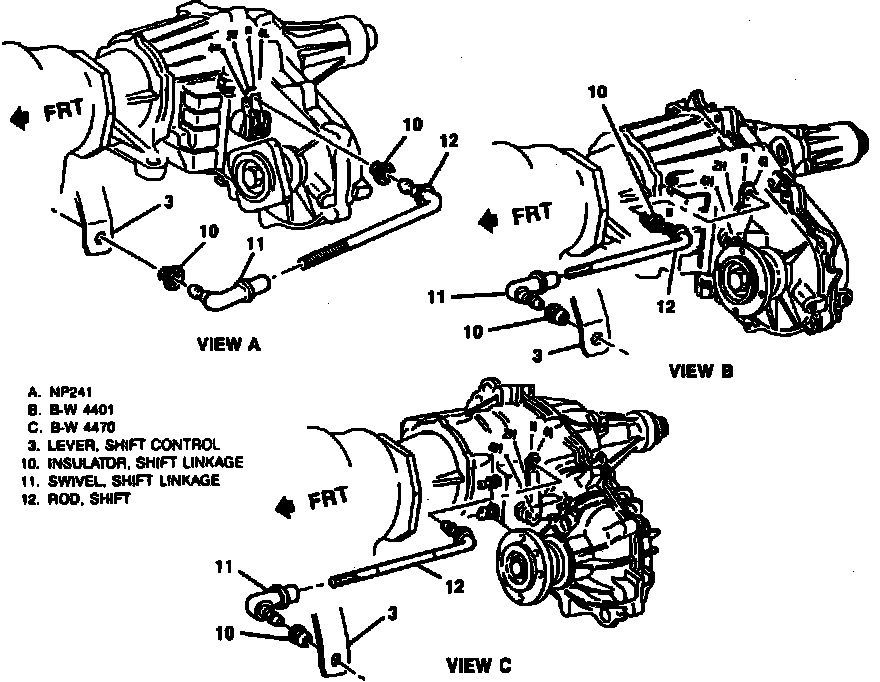

Fig. 1 Adjusting Shift Linkage:
1.
Place shift lever in the 4 HI position.
2.
Raise and support vehicle, then disconnect linkage rod from console shift lever.
3.
Shift
transfer case into 4 HI position, lever should be in full forward detent,
Fig. 1. 4.
Adjust swivel to align with hole in console shift lever.
5.
Install linkage rod into shift lever.
