Oil Pressure Sensor: Locations

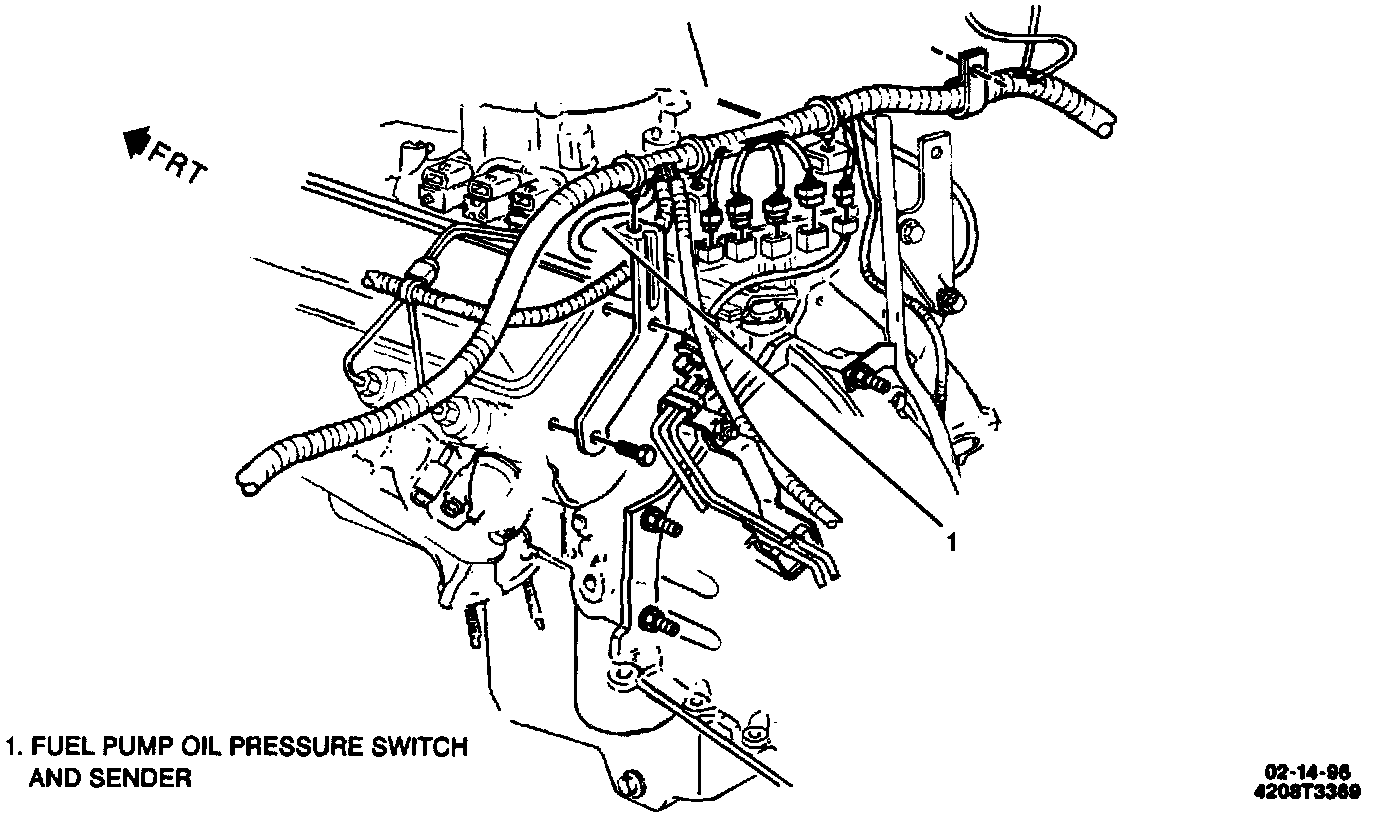

FUEL PUMP OIL PRESSURE SWITCH AND SENDER

Engine View, Rear:






The fuel pump oil pressure switch and sender is located under the intake manifold, center of engine.
