Power Accessory Switch Mounting Panel

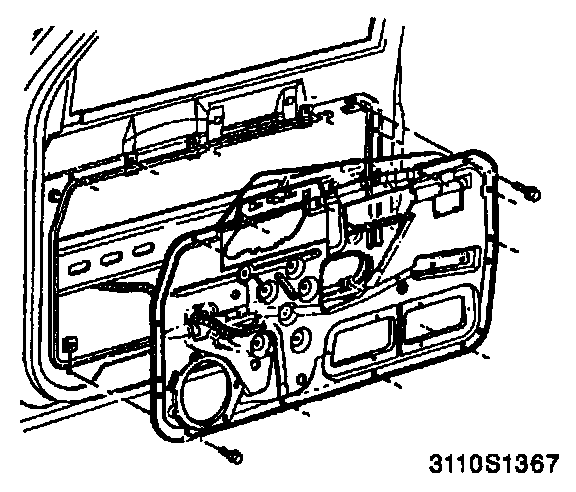

Front Door Power Accessory Switch Mounting Panel:

Remove or Disconnect

1. Negative battery cable.

Accessory Switch Plate Mounting:

2. Switch mounting panel.
^ Use a flat blade tool to carefully pry door accessory mounting panel from door trim panel.
3. Power accessory electrical connectors from switches and speaker (if applicable).
4. Switches from switch mounting panel (if applicable).
^ Use a flat blade tool to carefully pry switches from accessory mounting panel.
5. Speaker grill front switch mounting panel (if applicable).
^ Carefully spread speaker grill retainers.
6. Speaker from switch mounting panel (if applicable).
^ Rotate speaker counterclock-wise.

Install or Connect

1. Speaker to switch mounting panel (if applicable).
^ Rotate speaker clockwise.
2. Speaker grill from switch mounting panel (if applicable).
^ Snap in place.
3. Switches to switch mounting panel.
^ Snap in place.
4. Power accessory electrical connectors to switches and speaker (if applicable).
5. Switch mounting panel.
^ Snap in place.
6. Negative battery cable.
