Auxiliary Heating System

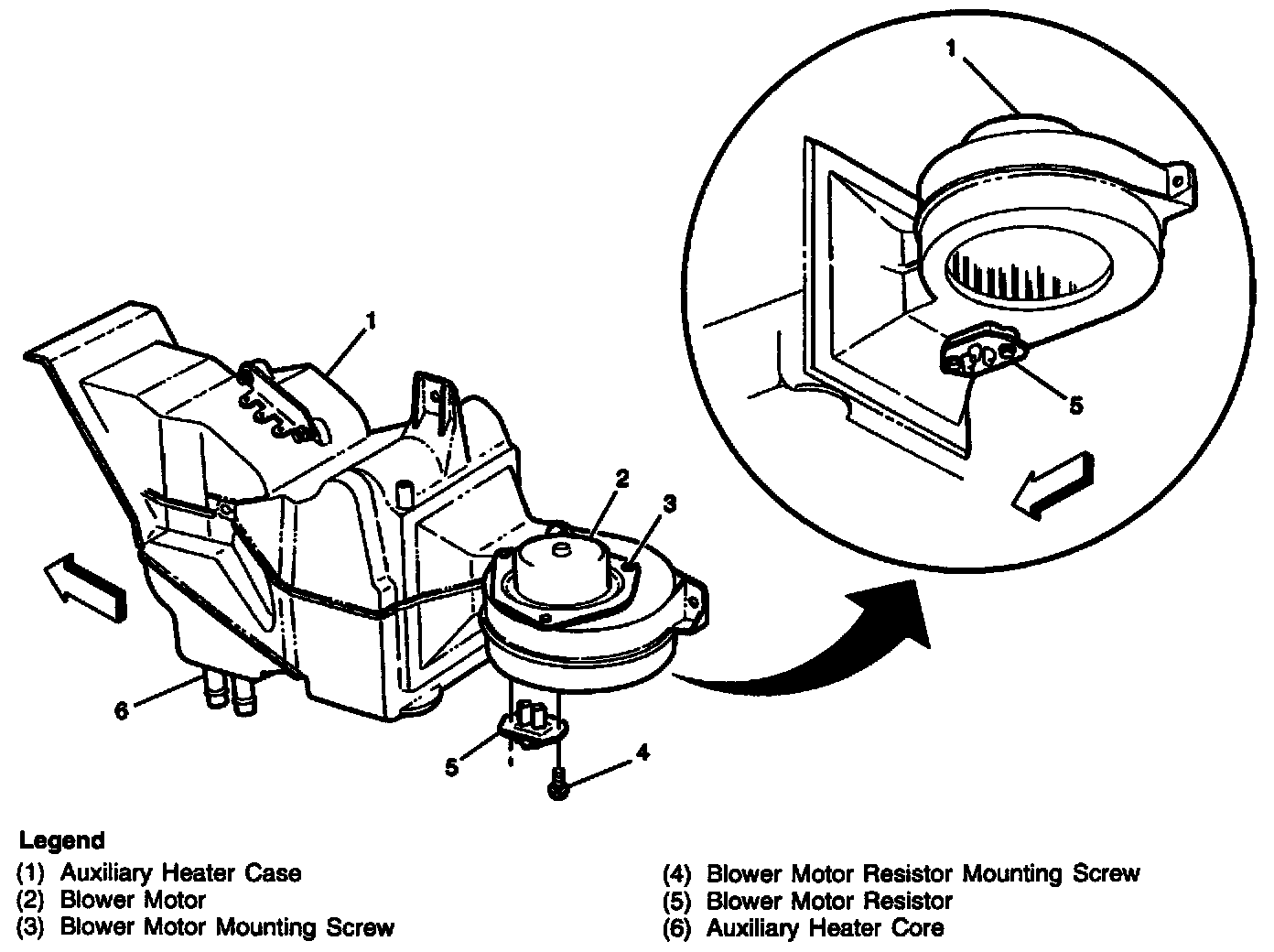

Auxiliary Blower Motor Fan And Resistor:






Remove or Disconnect

1. Negative battery cable.
2. Right rear quarter trim panel.
3. Electrical connectors, as necessary.
4. Screws.
- Position blower motor in order to remove blower motor fan.
5. Blower motor fan retaining nut.
6. Blower motor fan.
7. Blower motor.

Install or Connect

1. Blower motor.
2. Blower motor fan.
3. Blower motor fan retaining nut.
4. Screws.

Tighten
- Screws to 1.4 N.m (12 lb in).

5. Electrical connectors, as necessary.
6. Right rear quarter trim panel.
7. Negative battery cable.
8. Check circuit operation.
