Low Pressure Sensor / Switch, HVAC
Low Pressure Sensor / Switch, HVAC

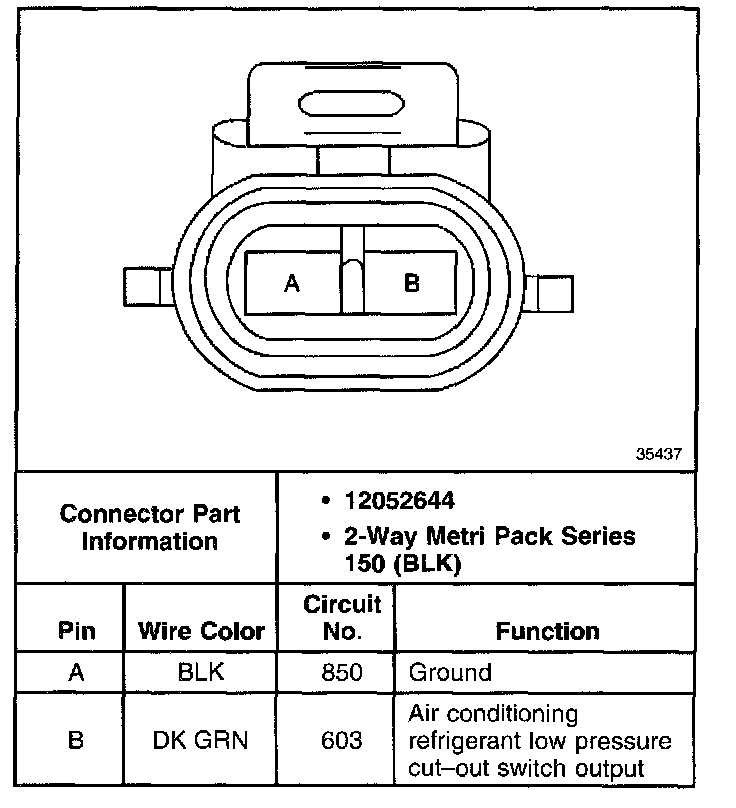

Air Conditioning Low Pressure Cut-Off Switch:
