Hose Replacement

REMOVAL PROCEDURE



1. Remove the washer solvent container.

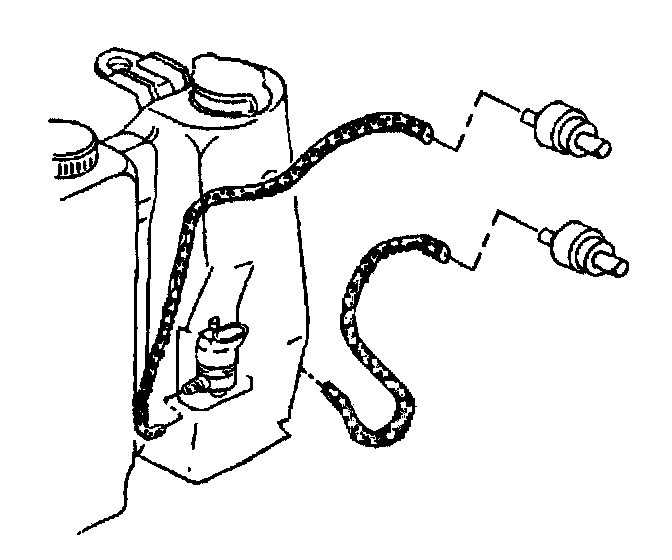

2. Remove the washer hose from the rear washer pump to the rear washer check valve.
3. Remove the rear washer check valve.
4. Remove the washer hose from the front washer pump to the front washer check valve.
5. Remove the front washer check valve.

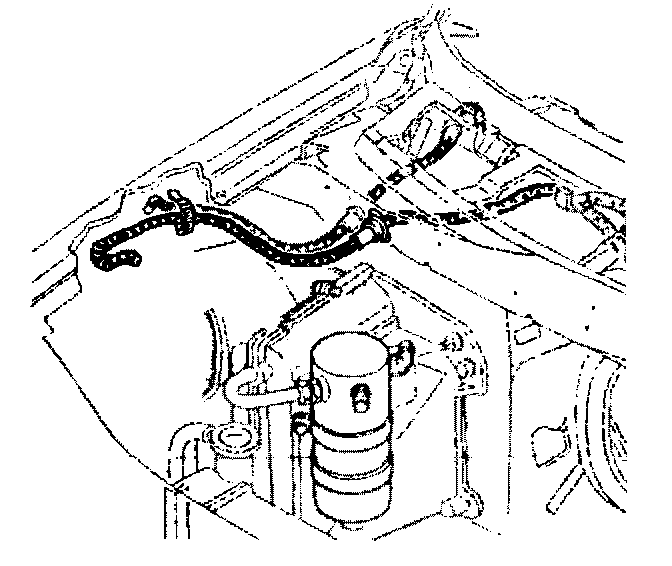

6. Remove the front washer hose and strap.




7. Remove the washer hose connector from the plenum clip.

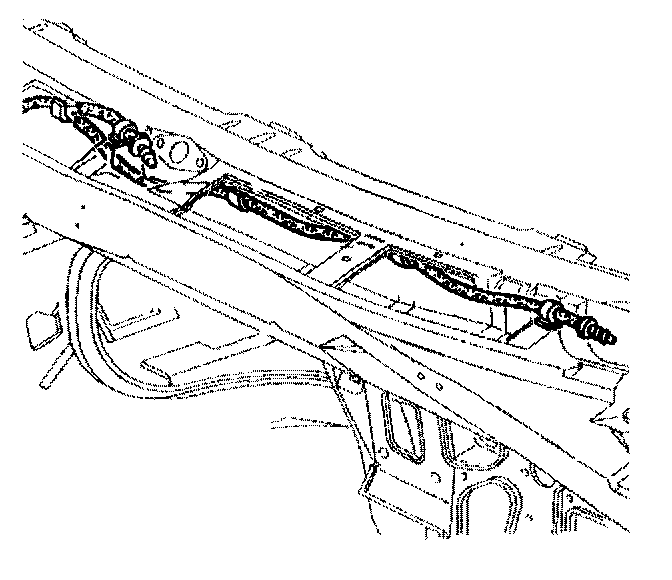

8. Remove the RH washer nozzle hose and hose clip.




9. Remove the LH washer nozzle hose from the two plenum clips.
10. Remove the LH washer nozzle hose and hose clip.

INSTALLATION PROCEDURE



1. Install the LH washer nozzle hose with the hose clip.
2. Install the LH washer nozzle hose in the two plenum clips.




3. Install the RH washer nozzle hose with the hose clip.
4. install the washer hose connector in the plenum clip.




5. Install the front washer hose and strap.




6. Install the front washer check valve.
7. Install the washer hose from the front washer pump to the front washer check valve.
8. Install the rear washer check valve.
9. Install the washer hose from the rear washer pump to the rear washer check valve.
10. Install the washer solvent container.
