Radio Replacement

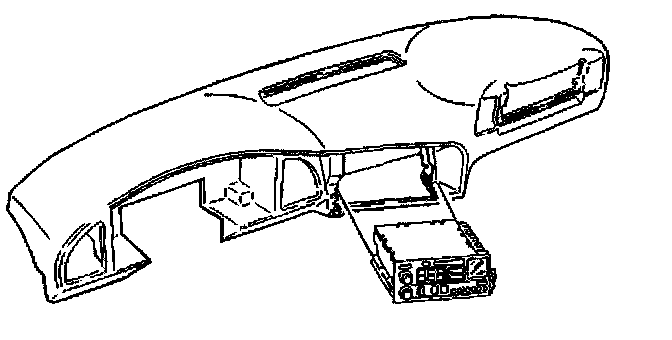

REMOVAL PROCEDURE
1. Remove the instrument panel cluster trim plate.
2. Squeeze the clip fasteners on the sides of the radio and pull out.
3. Disconnect the electrical and the antenna connectors.
4. Remove the radio from the vehicle.

INSTALLATION PROCEDURE
1. Install the radio to the vehicle.
2. Connect the electrical and the antenna connectors.
3. Align the mounting clips with the slots in the instrument panel and slide into place.
4. Install the instrument panel cluster trim plate.
5. Verify component operation.
