Axle Identification - Front
Axle Identification - Front:

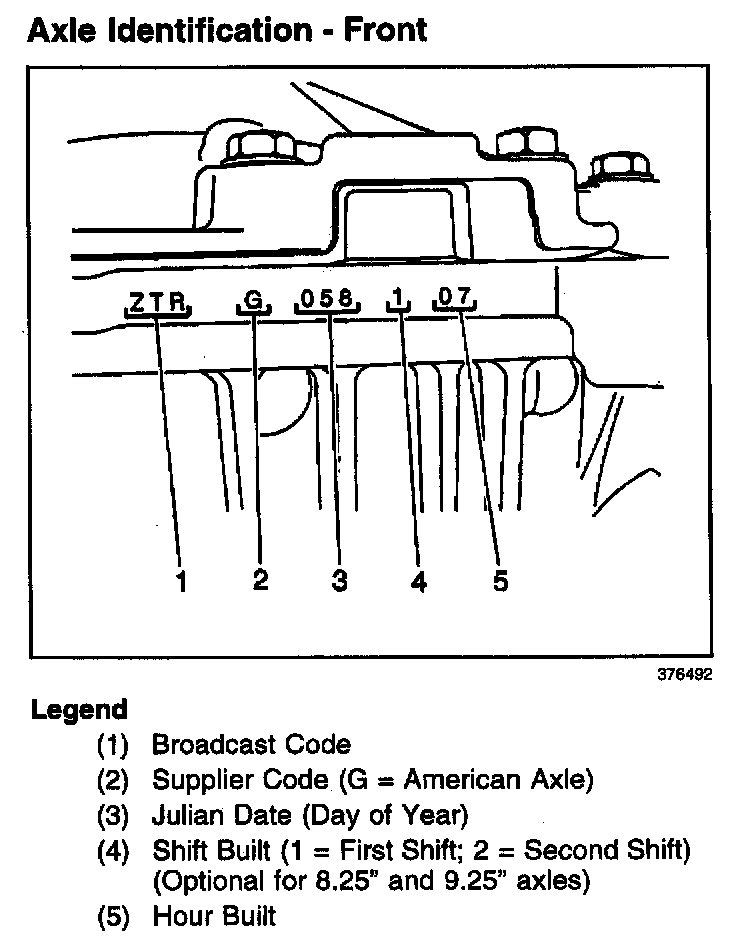

Front axle identification information is stamped on the top of the differential carrier assembly.

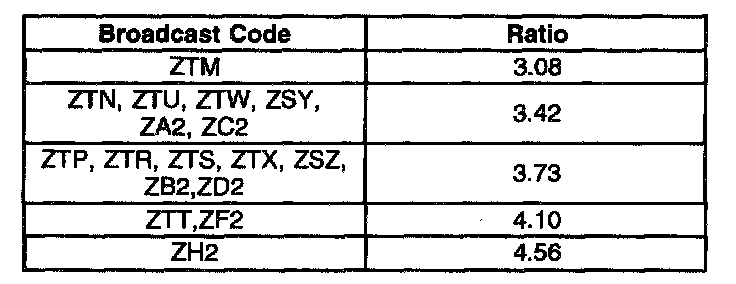

The above broadcast codes identifies the axle ratio:
The information on the differential carrier assembly is necessary for servicing.
