Operation CHARM
: Car repair manuals for everyone.
Home
>>
GMC
>>
2000
>>
Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C206 (Main Body to Convenience Center)
C206 (Main Body to Convenience Center)

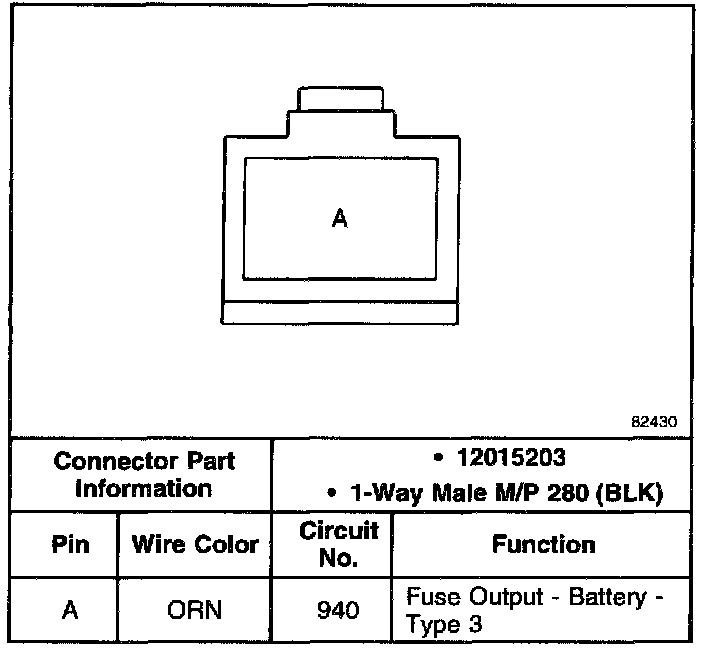

C206 (Main Body to Convenience Center):
