Ambient Light Sensor: Service and Repair

REMOVAL PROCEDURE

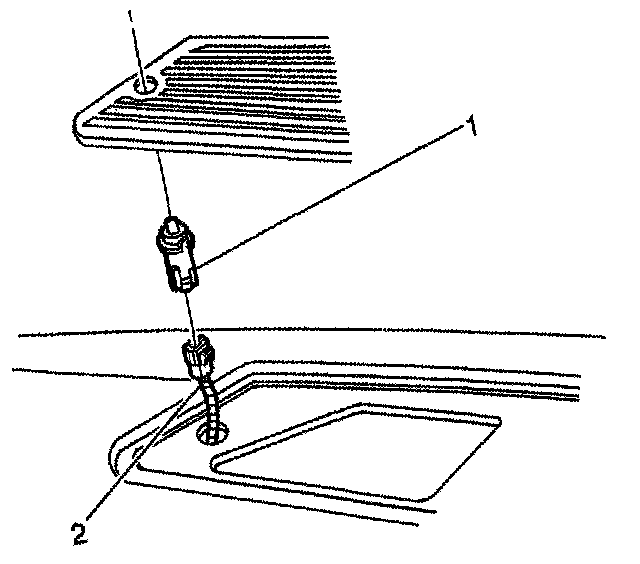

1. Lift upward on the center defogger grille located in center of the dash to expose the DRL photo sensor (1) retainer.
2. Turn the DRL photo sensor counter-clockwise 1/4 turn in order to remove.
3. Disconnect the electrical connection from the DRL photo sensor (1).

INSTALLATION PROCEDURE
1. Connect the electrical connection to the DRL photo sensor (1).
2. Insert the DRL photo sensor (1) and turn counter-clockwise 1/4 turn in order to seat.
3. Install the defogger grille located in the center of the dash by push downward.
