GAUGES

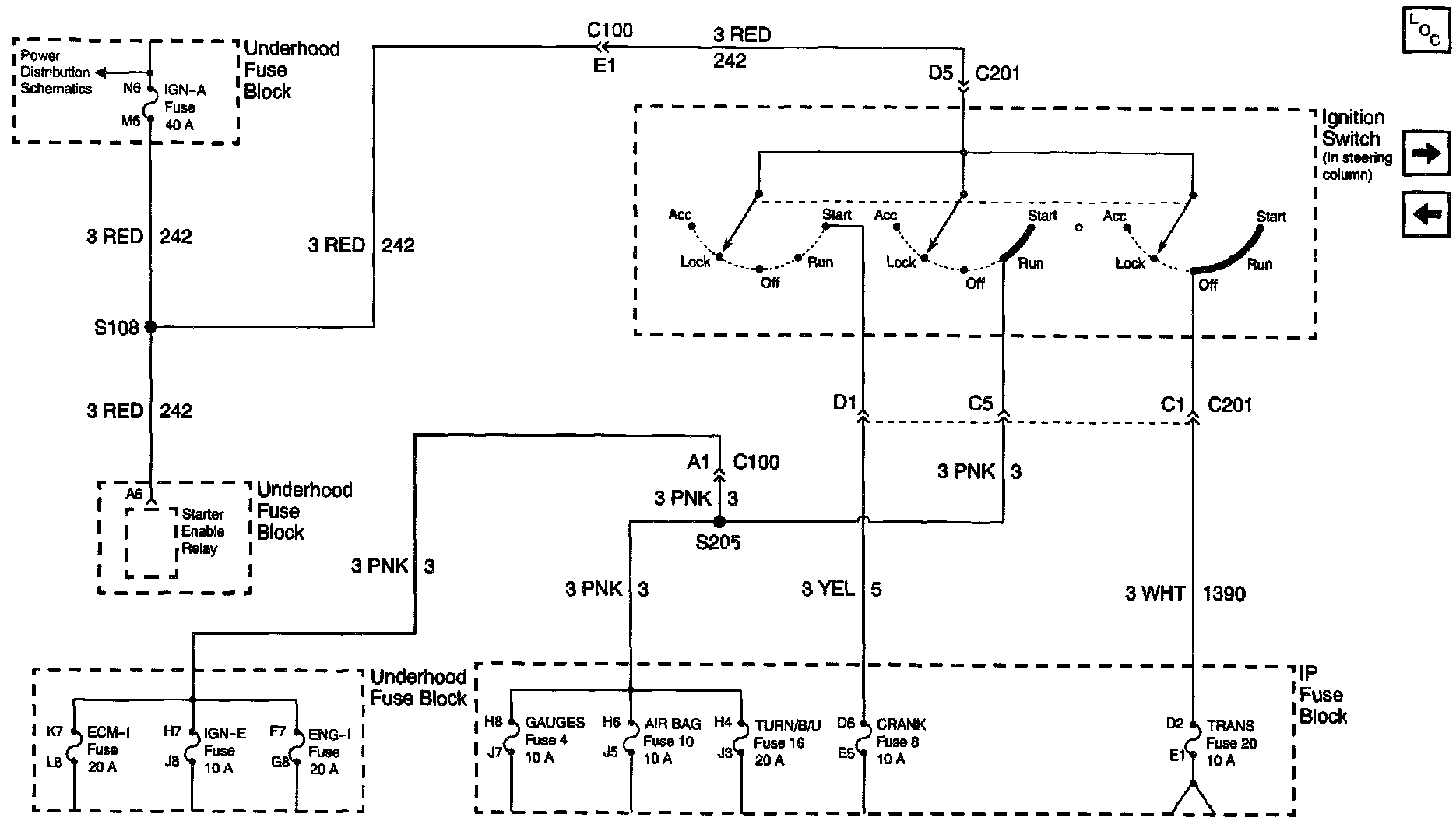

Power Distribution Schematics: IGN-A Fuse and Ignition Switch:



Ground Distribution Schematics: G104:
