Air Cleaner Fresh Air Duct/Hose: Service and Repair
REMOVAL PROCEDURECAUTION: Refer to Battery Disconnect Caution in Service Precautions.
1. Disconnect the negative battery cable.
2. Remove the engine cover.

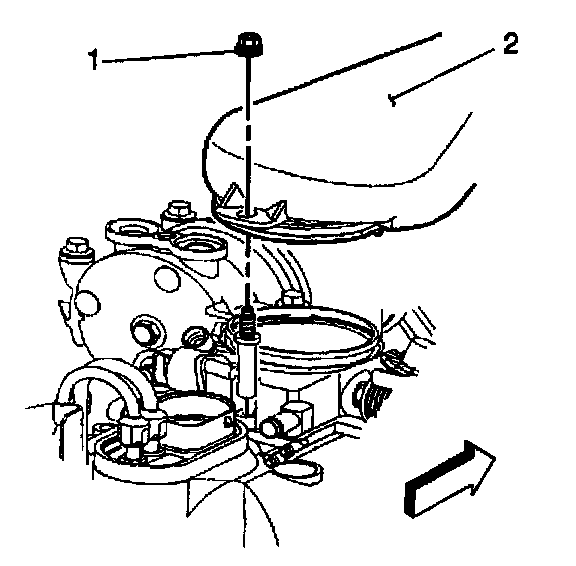

3. Remove the air cleaner outlet retaining nut (1).
4. Remove the air cleaner outlet duct (2) from the throttle body assembly.

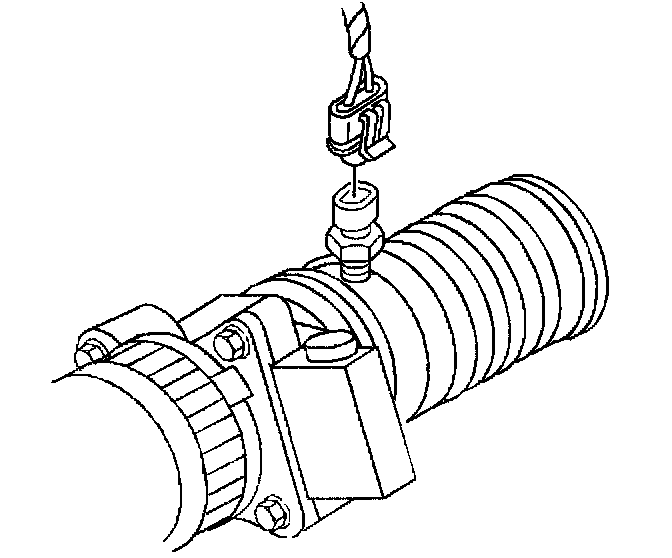

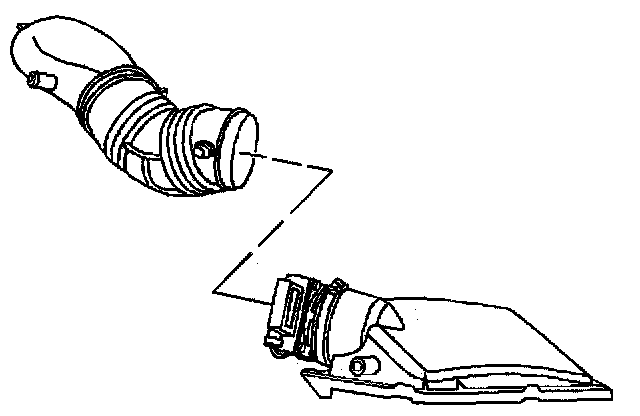

5. Disconnect the IAT sensor harness connector.
6. Loosen the air cleaner outlet duct from the MAF sensor.
7. Remove the air cleaner outlet duct.
INSTALLATION PROCEDURE
NOTE:Refer to Fastener Notice in Service Precautions.
1. Install the sir cleaner outlet duct to the MAF sensor.
Tighten
Tighten the clamp to 4 N-m (35 lb in).
2. Connect the IAT sensor harness connector.
3. Install the sir cleaner outlet duct (2) on the throttle body assembly.
4. Tighten the retaining nut (1).
Tighten
Tighten the nut 2 N-m (18 lb in).
5. Install the engine cover.
6. Connect the negative battery cable.
