Home >> GMC >> 2000 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> PWR ACCY

PWR ACCY

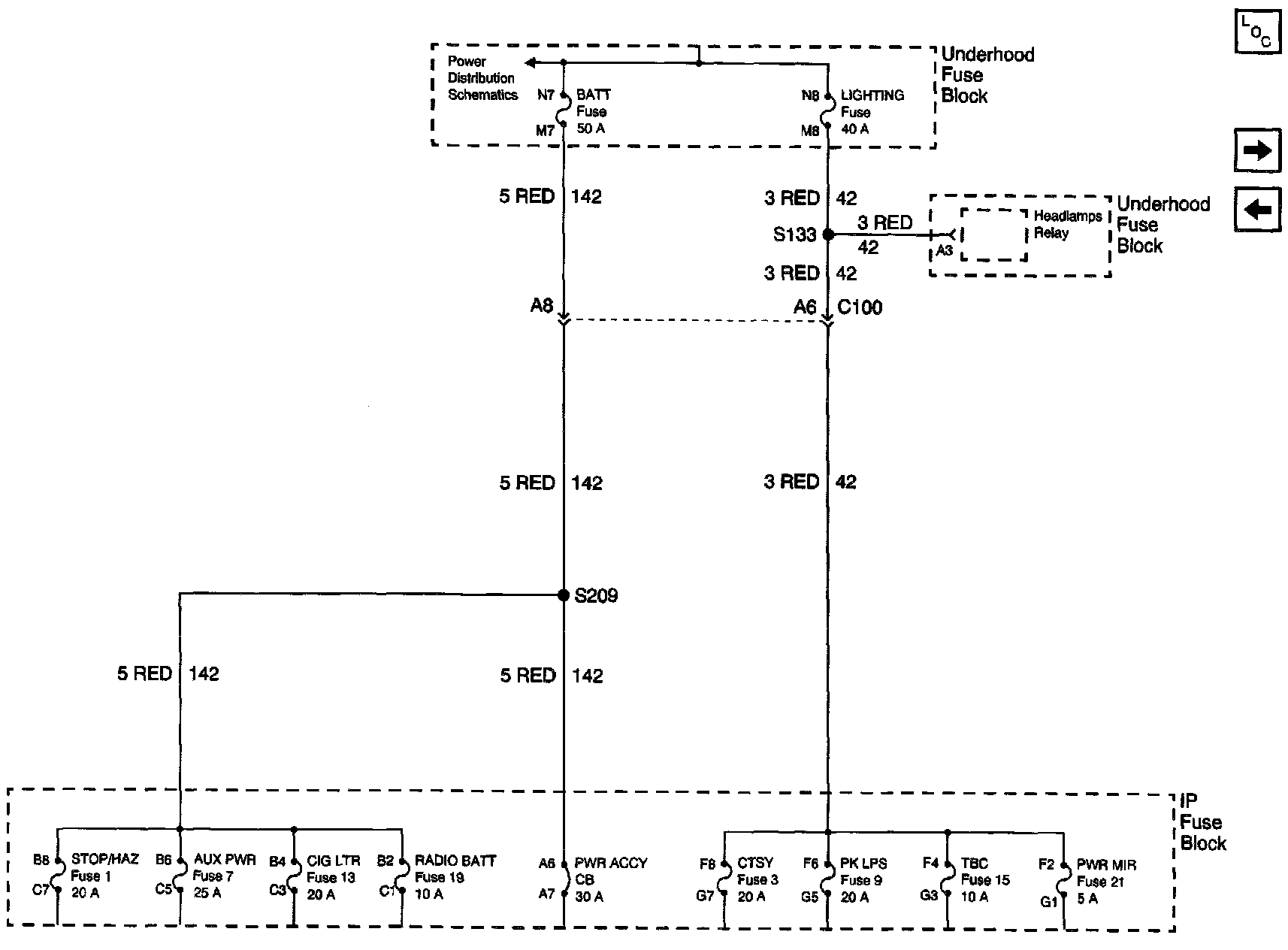

Power Distribution Schematics: BATT and LIGHTING Fuse:

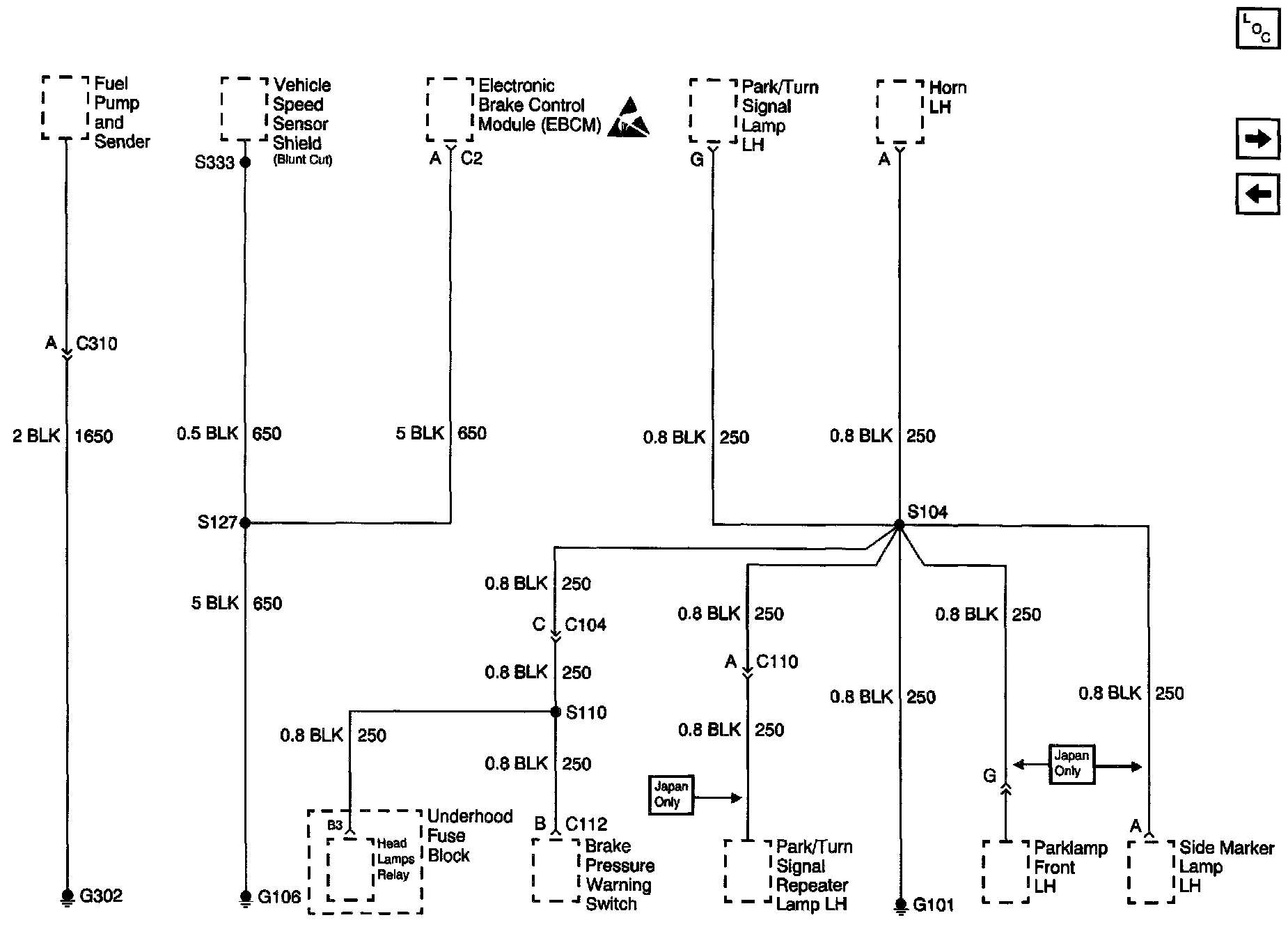

Ground Distribution Schematics: G101, G106 and G302:
