SIR Steering Wheel Module Coil - Disassemble

Disassembly Procedure
1. Remove the upper and lower shrouds. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle.

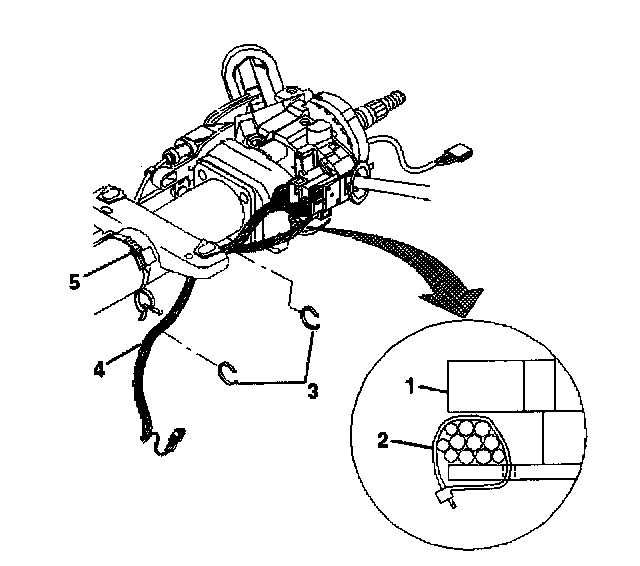

2. Remove the wire harness assembly (4) from the wire harness strap (5).
Remove the wire harness straps (3) from the wire harness assembly (4).
Remove the wire harness strap (2) from the upper tilt head assembly (1).

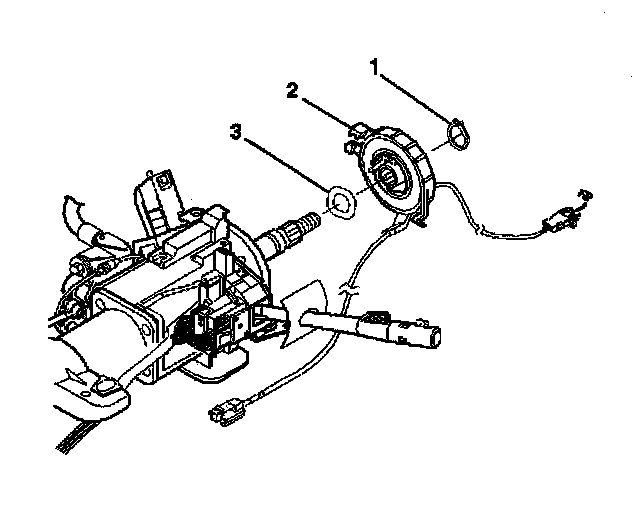

3. To remove the SIR coil assembly use the following steps:
3.1. The retaining ring (1) using the snap ring pliers.
3.2. The SIR coil assembly (2).
3.3. The wave washer (3).
