Seat Back Frame Replacement - Front

REMOVAL PROCEDURE




1. Remove the bucket seat from the vehicle.

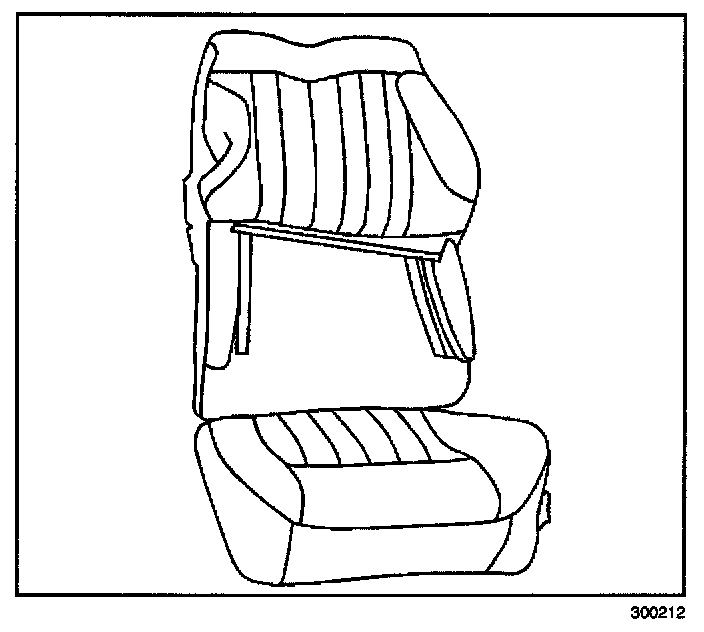

2. Remove the seat back cover and pad.
3. Remove the lumbar support cable.

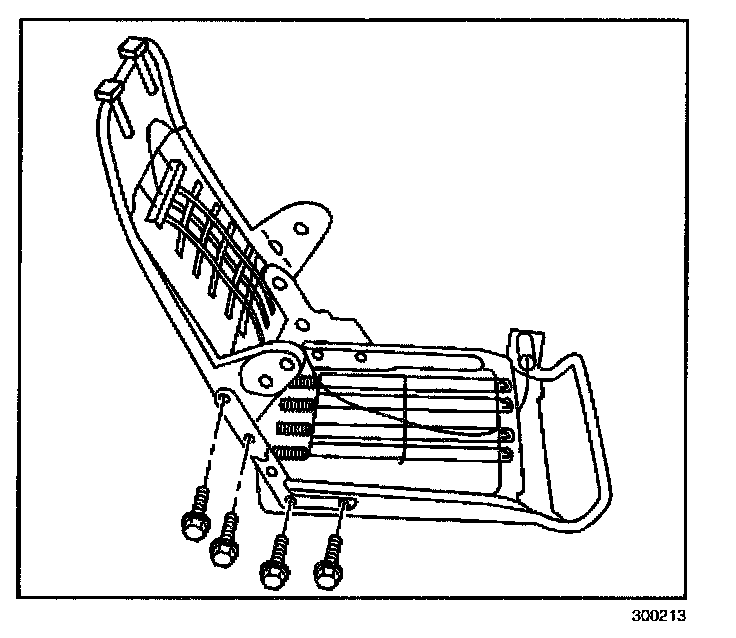

4. Remove the bolts from the seat back hinges on the right and left side.




5. Remove the seat back frame.

INSTALLATION PROCEDURE




1. Install the seat back frame.

NOTE: Refer to Fastener Notice in Service Precautions.

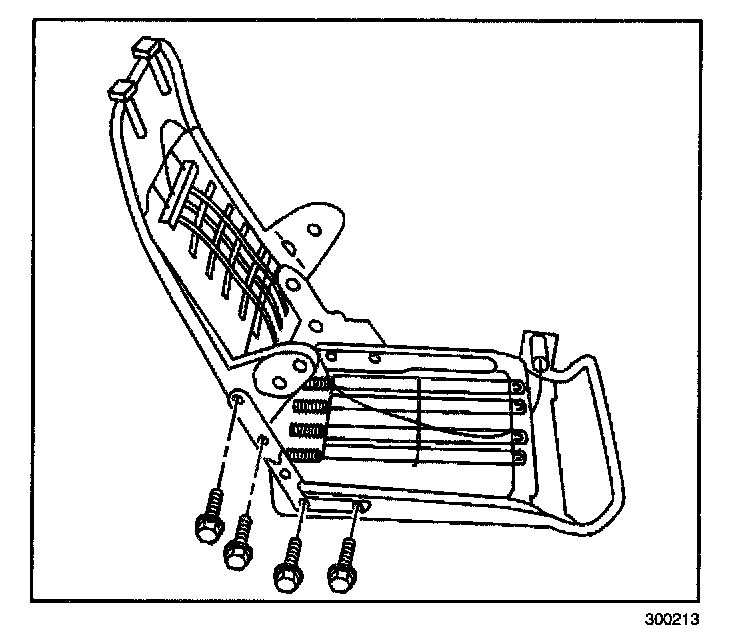

2. Install the bolts to the seat back hinges on the right and left side.

Tighten
Tighten the bolts to the seat back hinges on the right and left side to 30 N.m (22 lb in).

3. Install the lumbar support cable.

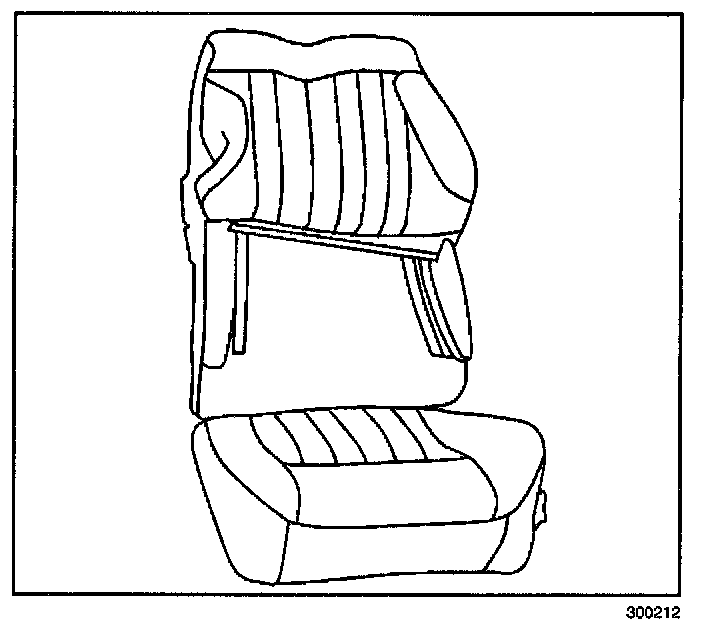

4. Install the seat back cover and pad.
5. Install the bucket seat in the vehicle.
