Starting and Charging: Locations
Engine Electrical Component Views

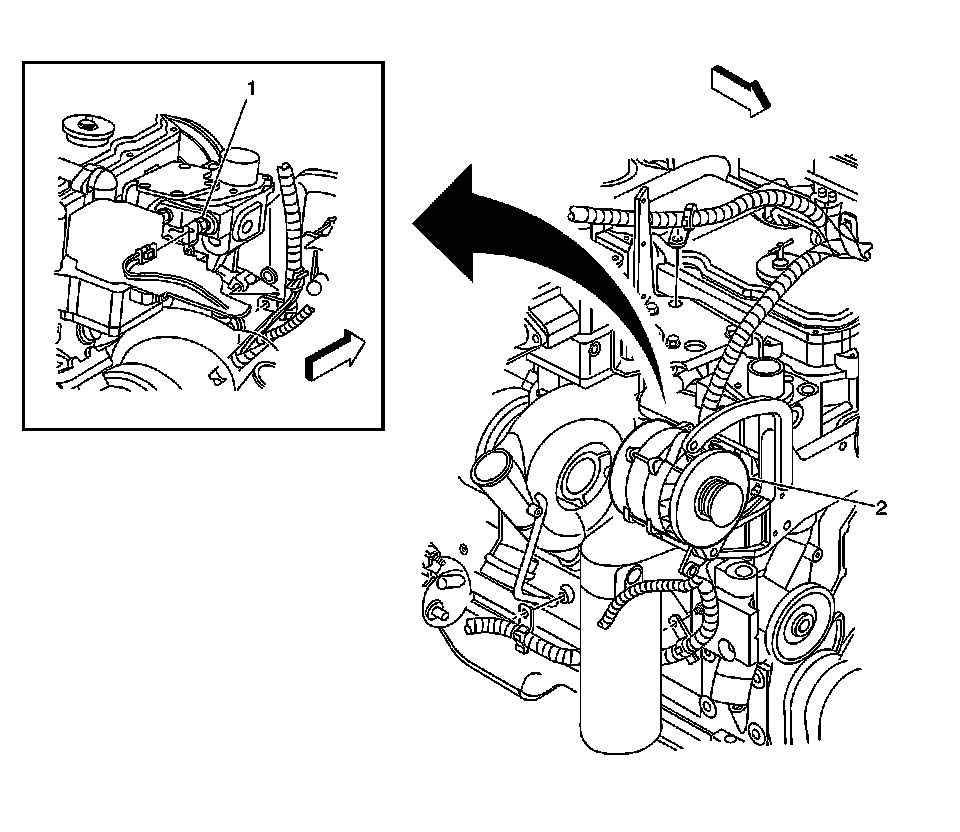

Engine Harness to Engine (LG5), Right Side
1 - Engine Coolant Temperature (ECT) Switch (UER)
2 - Generator

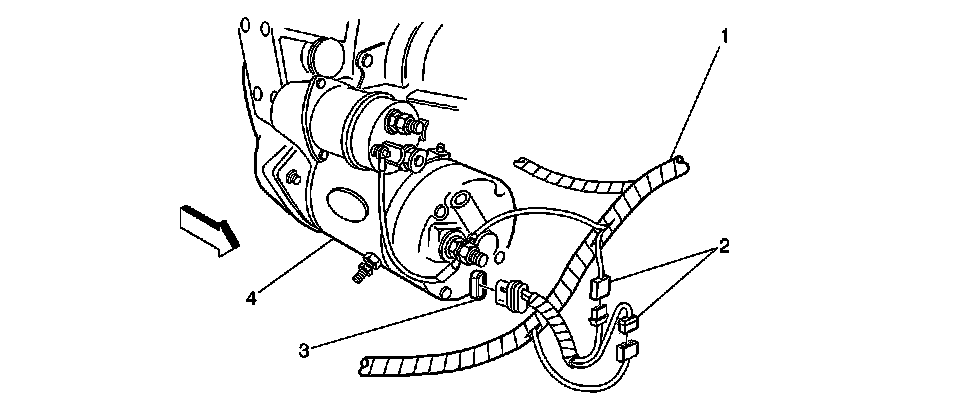

Engine Harness to Starter, Right Side Front View
1 - Engine Harness
2 - C106a/C106b
3 - Starter Temperature Switch, HD Starter with Overcrank Protection
4 - Starter
Positive Battery Cable to Engine Components, Right Front View
1 - Starter Solenoid
2 - Starter
3 - Engine Harness
4 - G101
5 - G103
6 - Positive Battery Cable
7 - G124

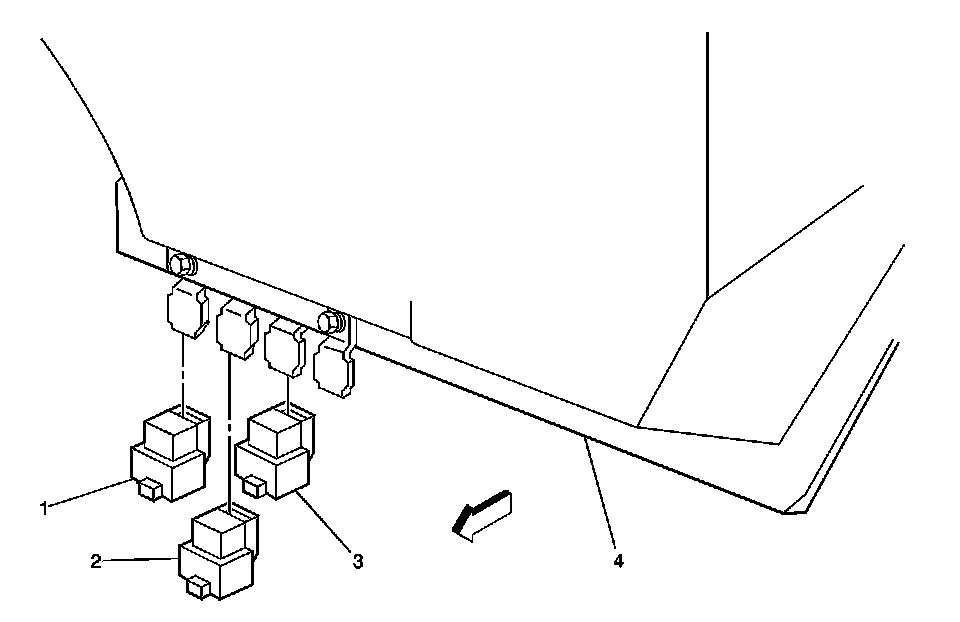

Relays-Lower Exterior Bulkhead, Right Side
1 - Automatic Transmission Modulator Relay
2 - Starter Relay
3 - Engine Brake Relay (LG5/K40)
4 - Bulkhead
