Control Lever And/Or Boot Replacement


Control Lever and/or Boot Replacement

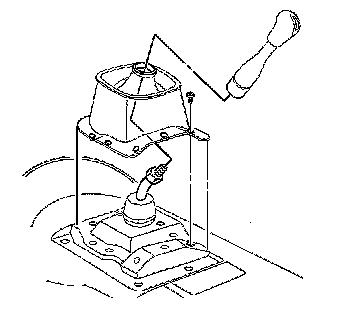

Removal Procedure





1. Remove the shift lever from the shift tower. Do not remove the shift lever adjusting nut.
2. Remove the screws securing the boot to the panel.
3. Remove the boot from the shift tower.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the boot over the shift tower and secure to the panel with the screws.
^ Tighten the screws to 2 Nm (18 inch lbs.).
2. Install the shift lever to the shift tower. If required, center the shift lever with the adjusting nut.
^ Tighten the adjusting nut to 48 Nm (35 ft. lbs.).
