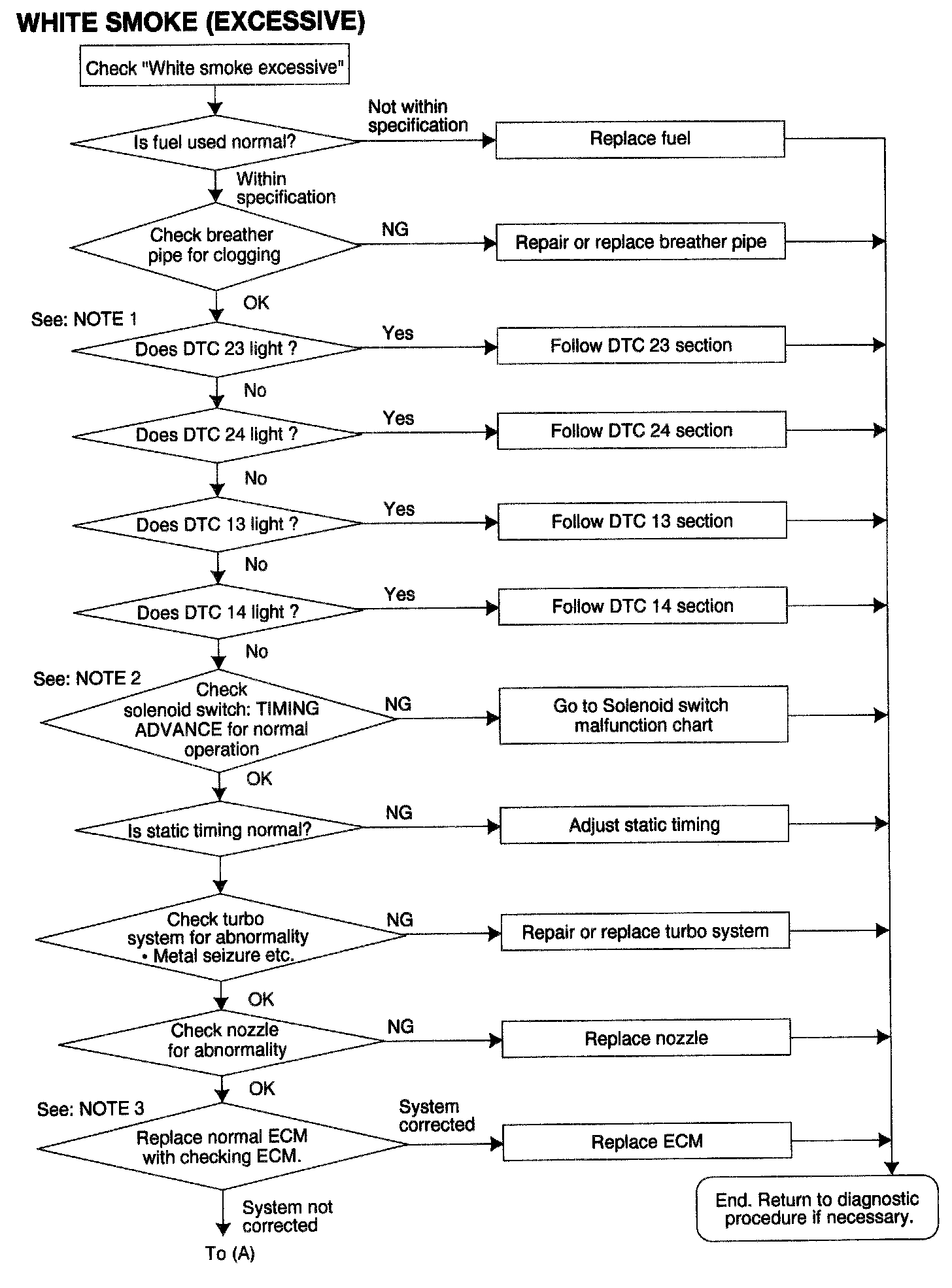

White Smoke (Excessive)

White Smoke (Excessive)










NOTE 1: "Follow (DTC-13, 14, 23, 24)" means to refer "EMISSION AND ELECTRICAL DIAGNOSIS of Diagnosis Trouble Code (DTC-13, 14, 23, 24)" for other DTC code, follow concerned DTC sections.

NOTE 2: Turn the ignition key from the "OFF" position to the "ON" position to put on the solenoid switch attached to the injection pump. After the solenoid switch being on for 18 consecutive seconds, check from the outside of the vehicle if the release sound of the solenoid switch is heard.

NOTE 3: The condition of the system in which the malfunction has occurred should be checked by making comparisons between the vehicle ECM and the checking ECM.
