Navigation System: Service and Repair

ANTENNA REPLACEMENT - GLOBAL POSITIONING SYSTEM (GPS)

REMOVAL PROCEDURE




1. Remove the I/P top pad.
2. Remove the radio.

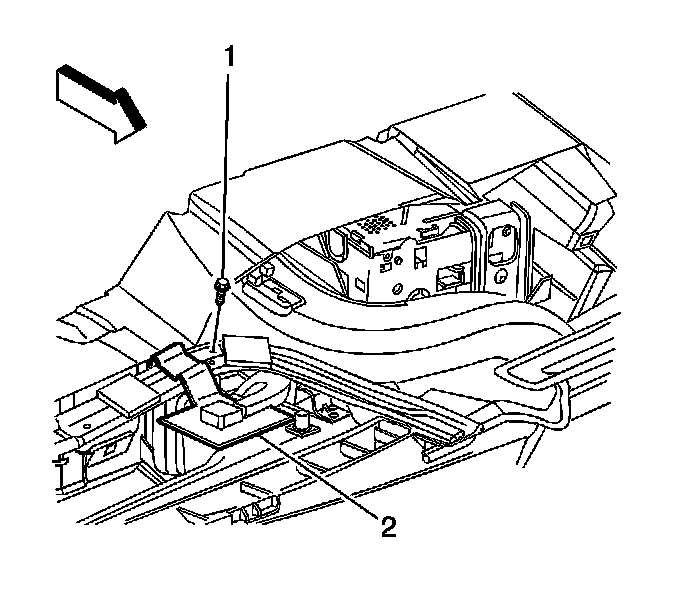

3. Remove the GPS antenna screw (1).
4. Remove the GPS cable from the I/P structure.

IMPORTANT: Observe the routing of the GPS antenna cable to ensure the GPS antenna cable is routed properly during installation.

5. Remove the GPS antenna (2) from the vehicle.

INSTALLATION PROCEDURE




1. Install the GPS antenna (2) to the I/P bracket.
2. Route the GPS antenna cable to the radio opening, as noted in the removal procedure.
3. Install the screw (1).

Tighten the screw (1) to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the radio.
5. Install the I/P top pad.
