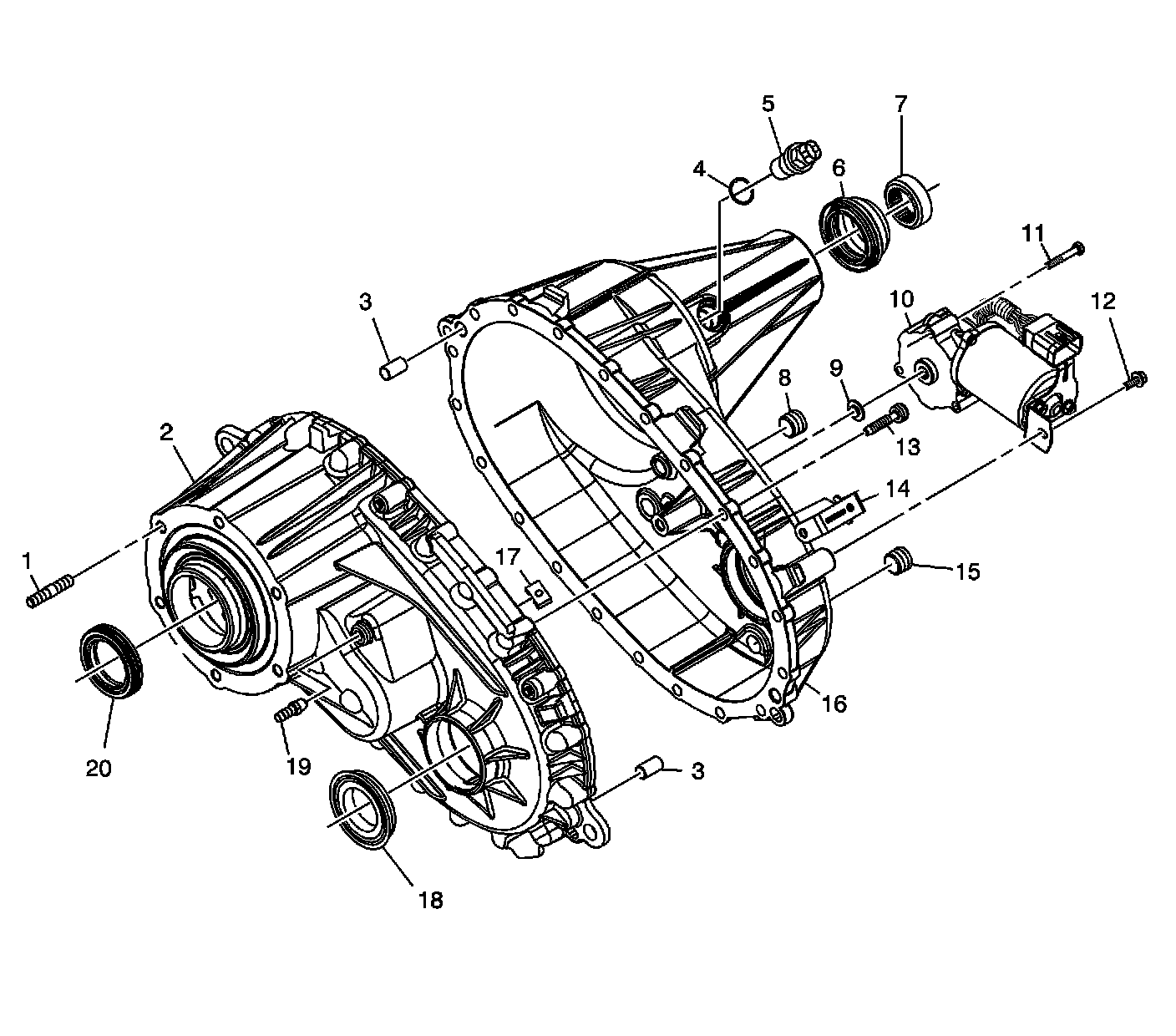

Case Components

Case Components

1 - Adapter Stud
2 - Front Case Half
3 - Location Pin
3 - Location Pin
4 - Vehicle Speed Sensor O-Ring Seal
5 - Vehicle Speed Sensor
6 - Rear Output Shaft Seal
7 - Shipping Seal
8 - Fill Plug
9 - Shift Detent Lever Seal
10 - Encoder Motor
11 - Encoder Motor Bolt
12 - Encoder Motor Bracket Bolt
13 - Case Half Bolt
14 - Wiring Harness Bracket
15 - Drain Plug
16 - Rear Case Half
17 - Magnet
18 - Front Output Shaft Seal
19 - Vent
20 - Input Shaft Seal
